Homemade Y-Axis Leadscrew Precision Alignment


Y-Axis Leadscrew Precision Alignment

186 More Best Homemade Tools eBook
TOOL:
Y-Axis Leadscrew Precision Alignment
PLANS:
None. For all tools with plans, click here.
BUILDER:
rgsparber on homemadetools.net
DESCRIPTION:

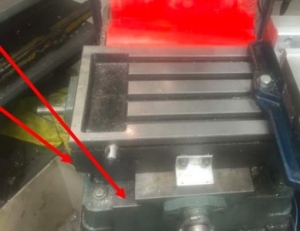

Homemade modifications to a RF-30 mill/drill intended to permit its Y leadscrew to be aligned to its ways to within 0.0005 inches in a 4-inch run.
RATING:
(1)
Post a comment
login / register
Sep 27, 2015 8:59 PM
rgsparber
A follow on article presents measured data of how the X and Y backlash reduction effort performs. I found an error within ± 0.001 inches over 40 measurements. If you are interested, please see http://rick.sparber.org/PDAXYR.pdf Your comments are welcome. All of us are smarter than any one of us.
Read all comments
Rate this build:
CATEGORIES:
Milling
TAGS:
drill, mill
LEVEL OF DETAIL (1-5):
4
URL:
http://rick.sparber.org/YAA.pdf
