    Yellowstone corkscrew bridge - photos

    Yellowstone corkscrew bridge built to allow cars and horse buggies the ability to travel up and over Sylvan Pass.






    Previously:

    Train passes underneath itself - GIF
    Train exiting the Tehachapi Loop - GIF

    186 More Best Homemade Tools eBook

  2. The Following 4 Users Say Thank You to Altair For This Useful Post:

    metric_taper (Feb 17, 2022), nova_robotics (Feb 17, 2022), Ralphxyz (Feb 17, 2022), rlm98253 (Feb 17, 2022)

  3. #2
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    2,665
    Thanks
    251
    Thanked 1,514 Times in 855 Posts

    hemmjo's Tools
    I am thinking, the first big rain that whole bridge is coming down from the water rushing down the gulley.

    2,000+ Tool Plans

  4. #3
    Supporting Member
    Join Date
    Apr 2014
    Posts
    444
    Thanks
    238
    Thanked 202 Times in 105 Posts

    Gadgeteer's Tools
    I don't see a corkscrew bridge. I see a curved bridge that functions as part of a corkscrew structure.

  5. #4
    mlochala's Avatar
    Join Date
    Nov 2012
    Posts
    503
    Thanks
    70
    Thanked 146 Times in 104 Posts

    mlochala's Tools
    Am I reading that correct? Is "1698" the date???

    Seems like it would have been nearly as simple just to go straight down the slope right there.

  6. #5
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    2,665
    Thanks
    251
    Thanked 1,514 Times in 855 Posts

    hemmjo's Tools
    That date is in error. The same photo is show here with the caption "A Frost and Richard tour party returning from Yellowtone approx. 1915."

    information here

  7. #6
    Supporting Member
    Join Date
    Jul 2020
    Posts
    28
    Thanks
    62
    Thanked 19 Times in 9 Posts

    Cataloged references

    Quote Originally Posted by mlochala View Post
    Am I reading that correct? Is "1698" the date???

    Seems like it would have been nearly as simple just to go straight down the slope right there.
    The number '1698' is not for the date, January 6 1898, the way we might write it now.
    It is a catalog reference number for the photo.
    Since photography and multiple copies were so expensive then, the number and title would have been in the reference book for both the Park Service and Department of Interior and likely Library of Congress among other locations.

    I don't know the original size of this but many of these photos were/are very large, like 20" by 30", so they had to be stored and handled carefully.

    As far as the road in the pass, it's up in the 8000- 9000 foot elevation and at a very, very steep grade.
    Going straight down was probably simpler; the stopping/braking and steering a wagon would have been the issue with any, up or down.
    There is also the livestock problem. A horse or mule singly or in teams couldn't have made that grade safely if at all pulling a loaded wagon.
    It appears from the photo the loop reduced the effort possibly as much as 3 fold. A guesstimate, yes.
    Any civil engineers to elaborate on the picture?
    Last edited by techcollect; Feb 18, 2022 at 10:05 AM.

  8. #7
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    2,665
    Thanks
    251
    Thanked 1,514 Times in 855 Posts

    hemmjo's Tools
    I am not an engineer, but even animals (dogs, cats, cows, elk, buffalo, mountain goats, etc) do not try to travel straight up or down a mountain. They "traverse" the incline, making the journey longer, but much less steep.

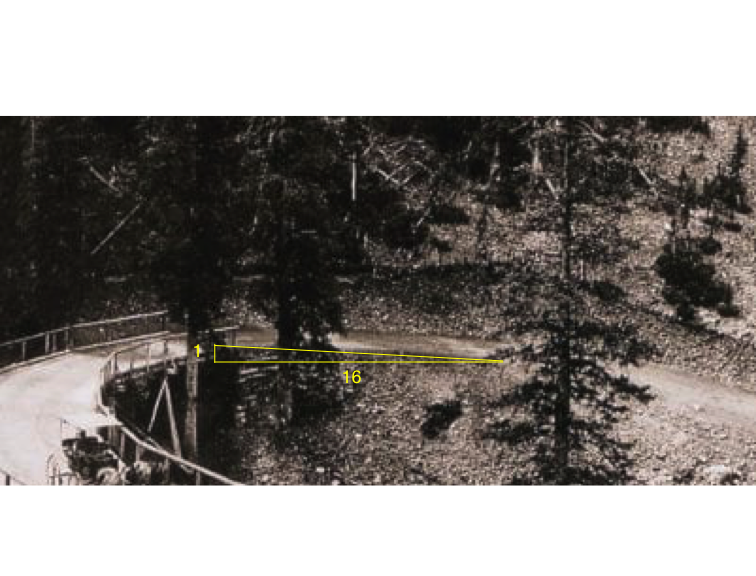

    This crude measurement shows this section of the road has about 6% grade. Very steep by todays standards.
