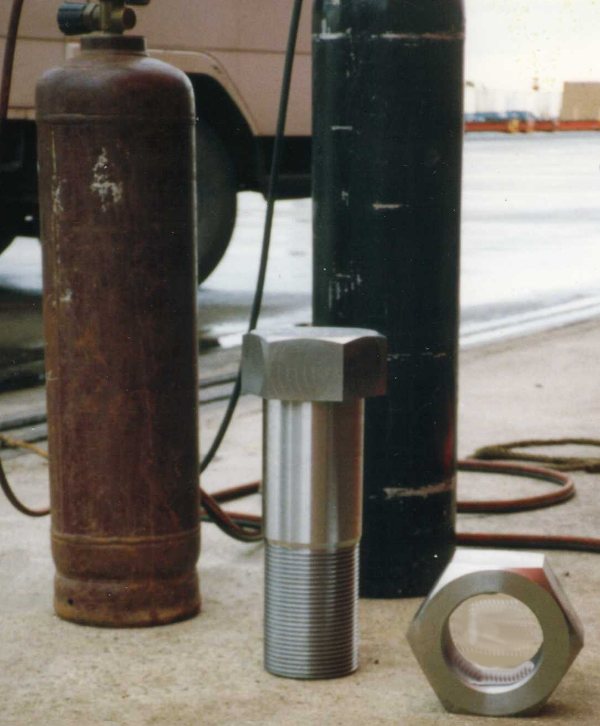

    I wonder if they used bolts like this to hold it together?Attachment 25563
    Yup, and probably more than 12 of them. Sorry couldn't resist....

    2,000+ Tool Plans
    ‘‘Always do right. This will gratify some people and astonish the rest.’’
    Mark Twain

  3. #93
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,438
    Thanks
    8,100
    Thanked 40,247 Times in 11,775 Posts
    Alcoa 50,000 ton forging press, built by the now-defunct Mesta Machinery. The fullsize images linked below are over 3500px wide, and suitable for framing.

    This beauty is a National Historic Mechanical Engineering Landmark. More: https://www.asme.org/wwwasmeorg/medi...ging-Press.pdf

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...1_fullsize.jpg


    Fullsize image: https://diqn32j8nouaz.cloudfront.net...2_fullsize.jpg


    If you are looking for a good entrance to a rabbit hole for enormous presses, just look up "heavy press program", and then take that route back to The Cold War. Then hang a left, and follow the path back to WWII and invading Soviet forces seizing German presses. From there, keep going back to WWII aviation, then back more to the origins of magnesium press forming. Finally, keep going on that same route, all the way back to the Treaty of Versailles. See ya in 100 hours!
