    Vertical car parking machine - GIF

    Vertical car parking machine.



    Previously:

    Parallel parking a fighter jet on an aircraft carrier - GIF
    Towing a parallel-parked car - GIF
    Compact car parking solution GIF

    186 More Best Homemade Tools eBook

  2. The Following 4 Users Say Thank You to Jon For This Useful Post:

    blkadder (Sep 25, 2024), PJs (Aug 28, 2018), Scotsman Hosie (Apr 9, 2019), Seedtick (Aug 27, 2018)

  3. #2
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,633
    Thanks
    2,184
    Thanked 9,134 Times in 4,366 Posts

    Frank S's Tools
    Careful Jon you are getting into a field where I spent nearly 30 years researching and developing machines.
    The main problem with the Carosel as they are called is the retrieval time. the second problem is the mass to be moved and brought to rest the 3rd issue is load balancing the Times when all platforms are empty on either side while the other is fully loaded a tremendous amount of strain is placed on the drive mechanism.
    systems similar to the video have been around since the 1920's here in the USA. Japan began manufacturing their versions I think sometime in the 1950's or 60's but I can not verify that
    A very famous vertical vehicle storage facility at the VW factory In Wolfsburg Germany
    Some History of vertical car park Carosels in the USA dating back to 1920 Actually invented in France in 1905
    https://mashable.com/2016/01/23/vert.../#HWubON1GEGqy
    My machines were most 2 and 3 level but I had designed based on the Central Well car park built in England sxcept my machine would have been completely autonomous

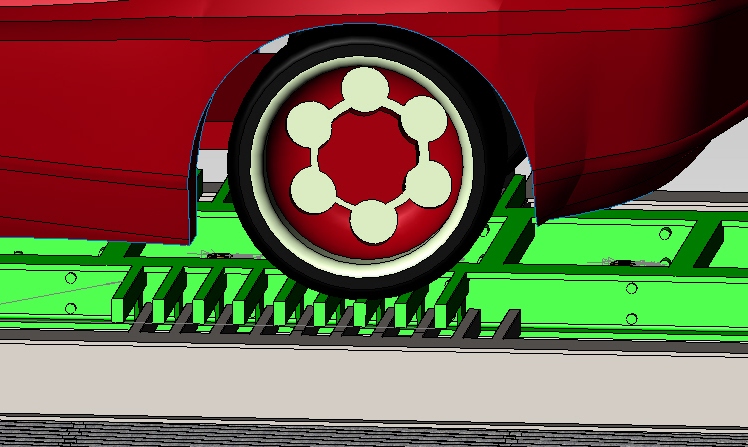

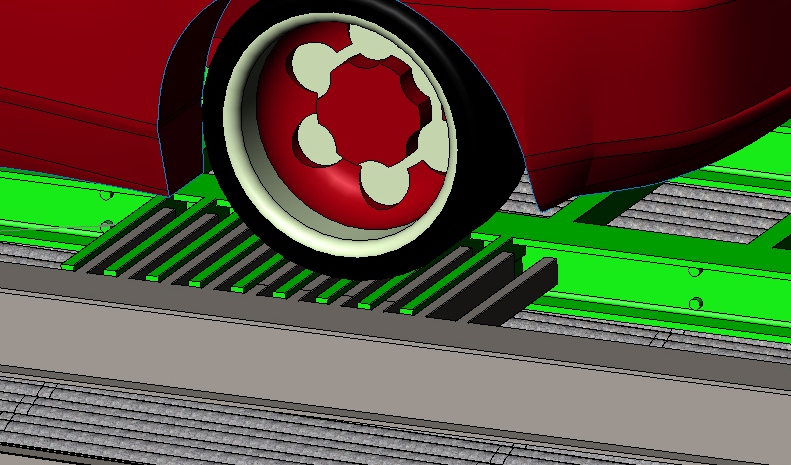

    Vertical car parking machine - GIF-automated-parking-structure-1.jpg

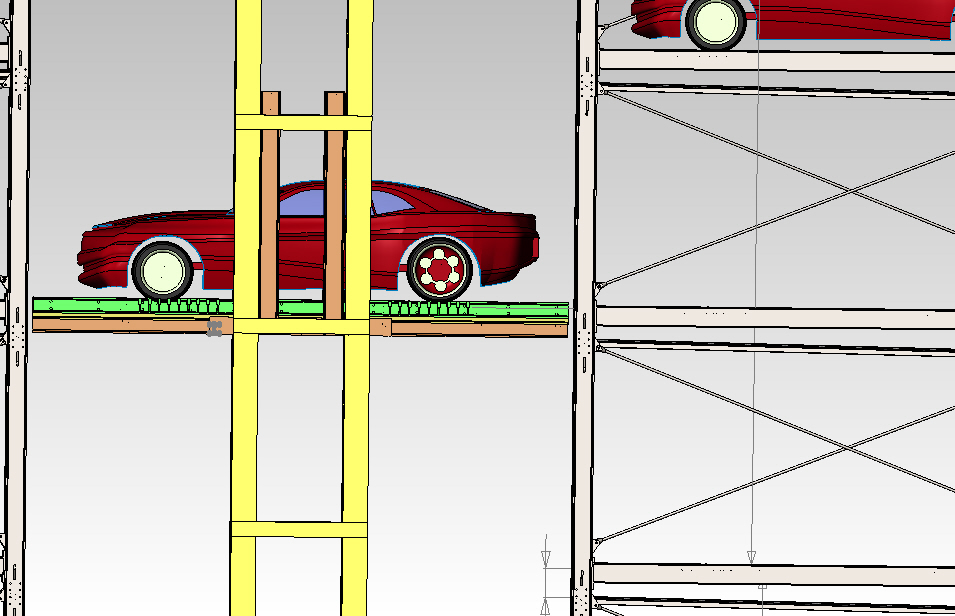

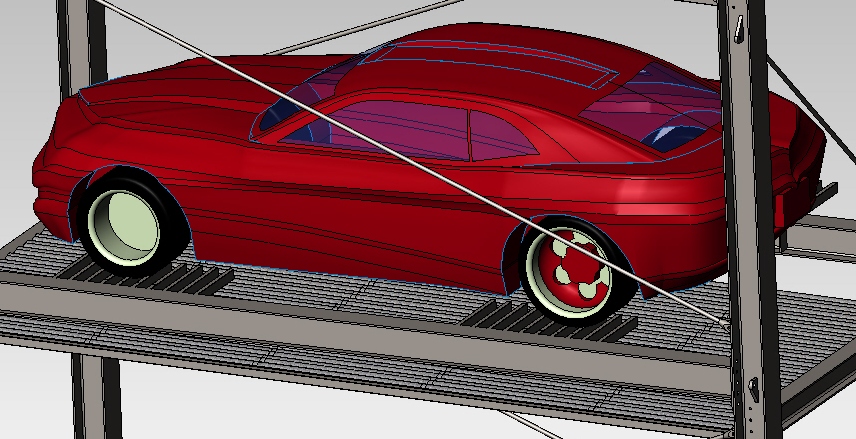

    Vertical car parking machine - GIF-automated-parking-structure-2.jpg

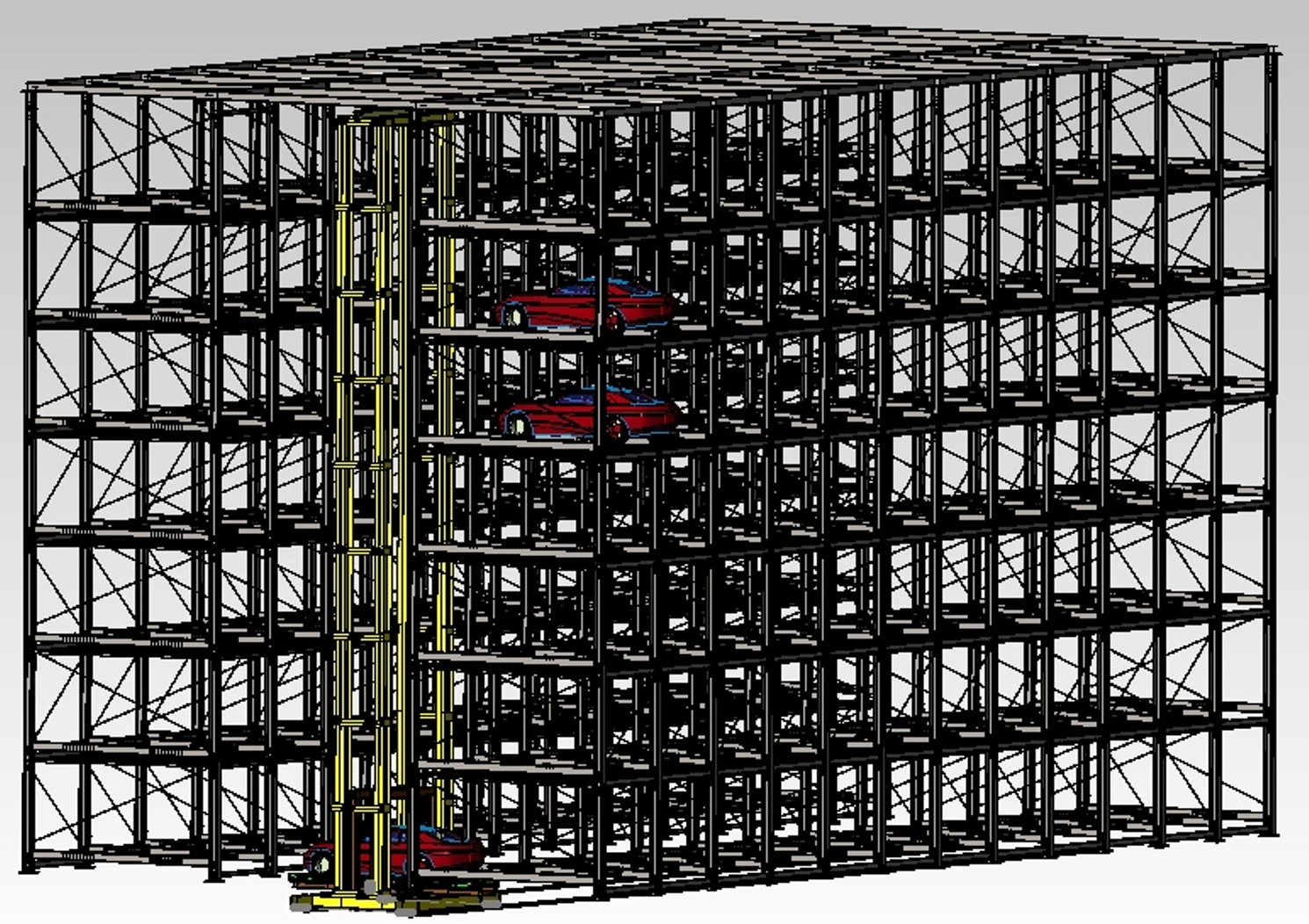

    Vertical car parking machine - GIF-automated-parking-structure-3.jpg
    Vertical car parking machine - GIF-automated-parking-structure-4.jpg
    Vertical car parking machine - GIF-automated-parking-structure-5.jpg
    A couple of my simpler car park machines
    Trade name Car-Stackers

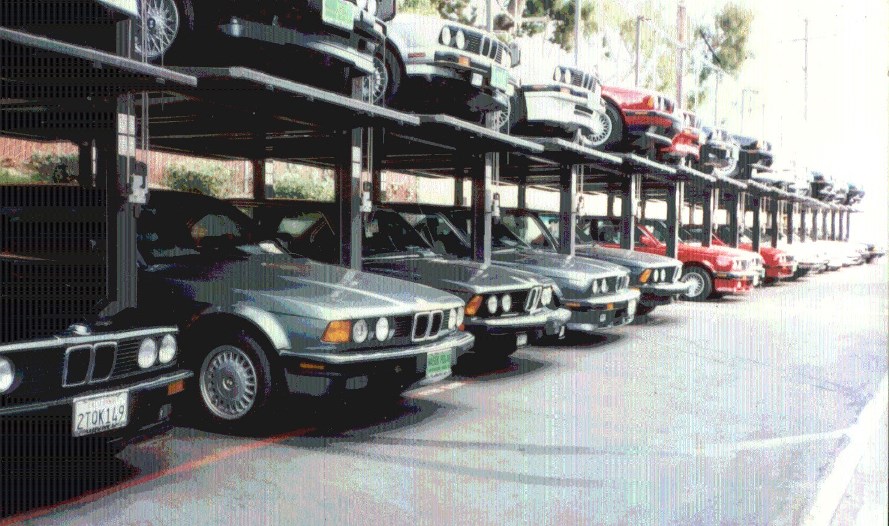

    Vertical car parking machine - GIF-ag05_009.jpg3.jpg

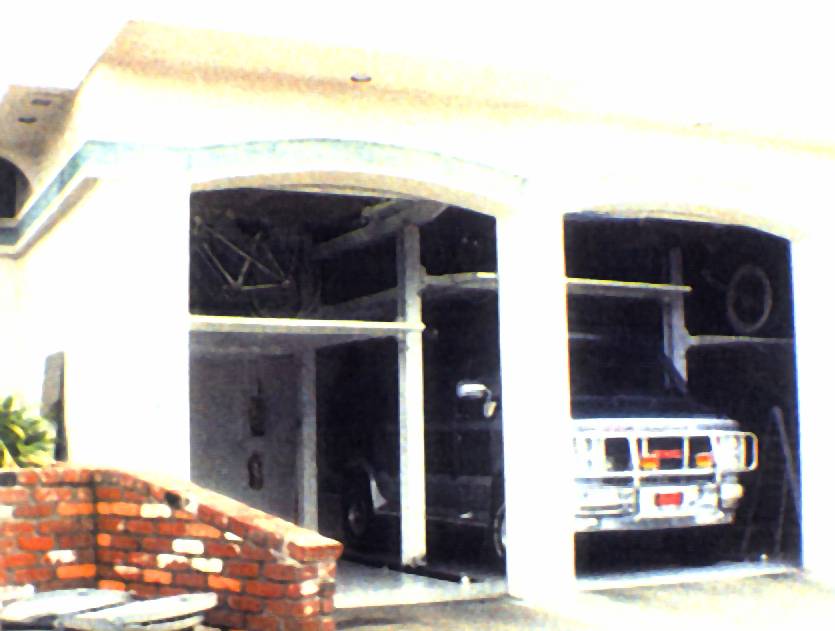

    Vertical car parking machine - GIF-fp6-suv9-fix-flaw.jpg

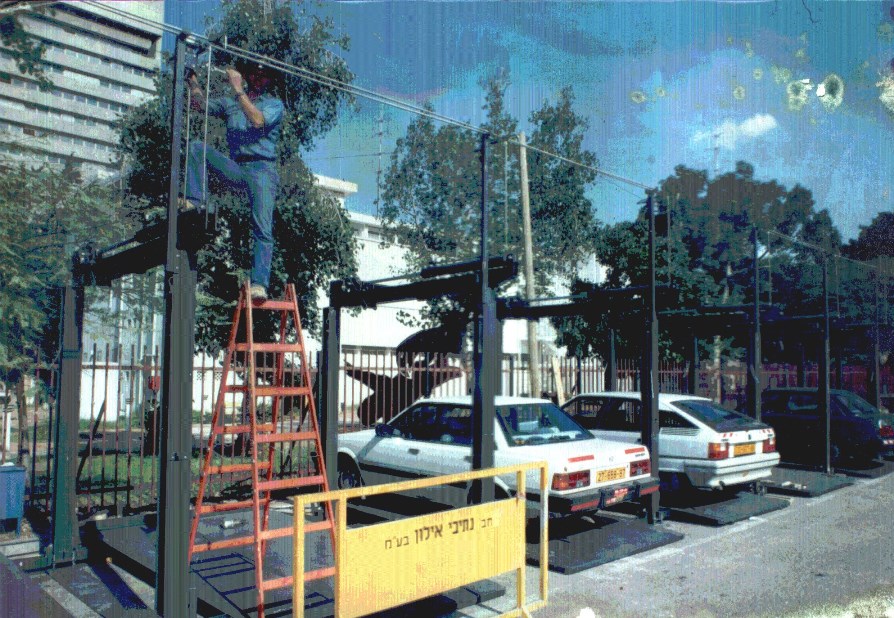

    Me in Tel Aviv Israel
    Vertical car parking machine - GIF-ag05_016.jpg3.jpg

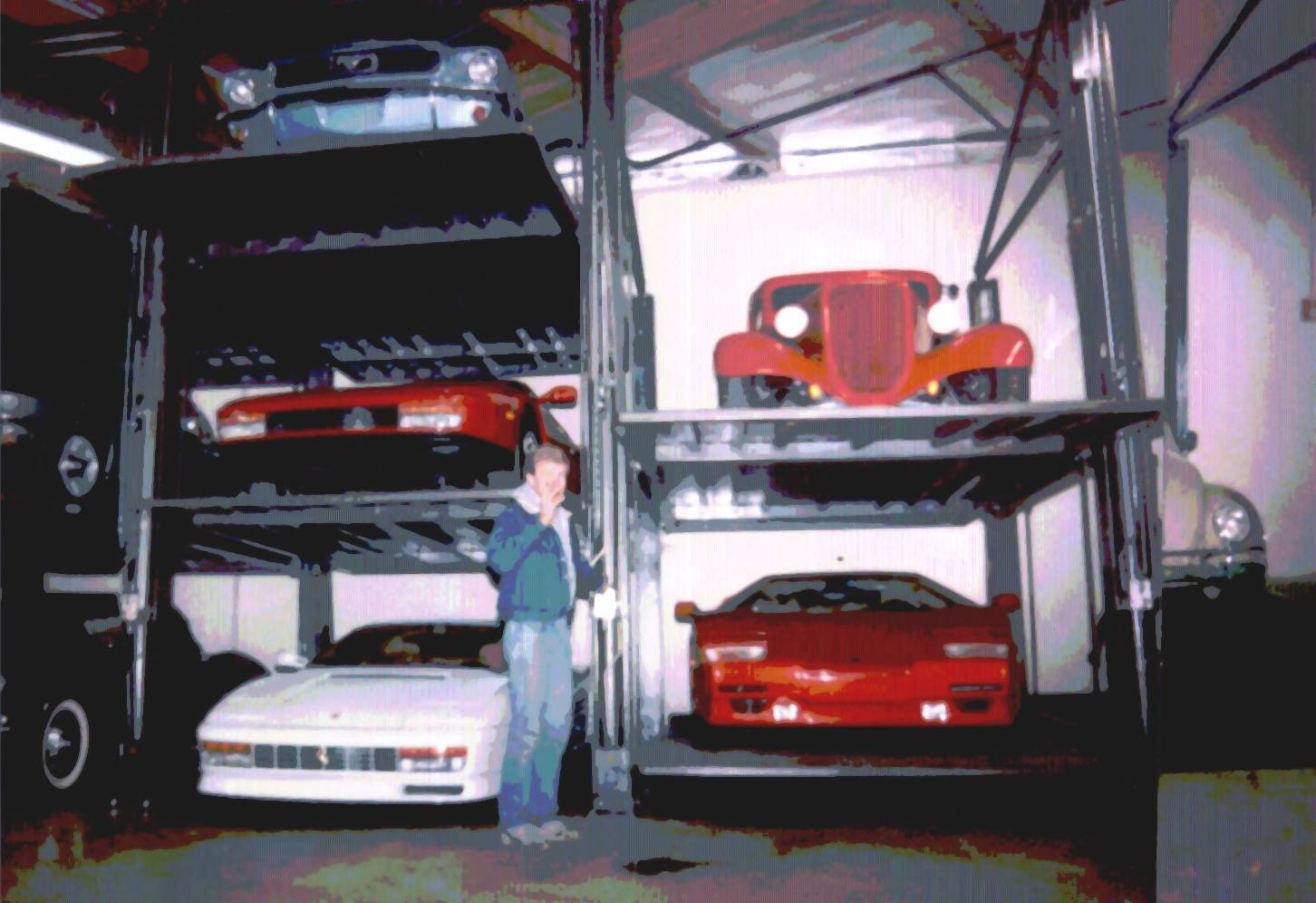

    A helper next to a set of triples
    Vertical car parking machine - GIF-ag05_005-fix-flaw.jpg

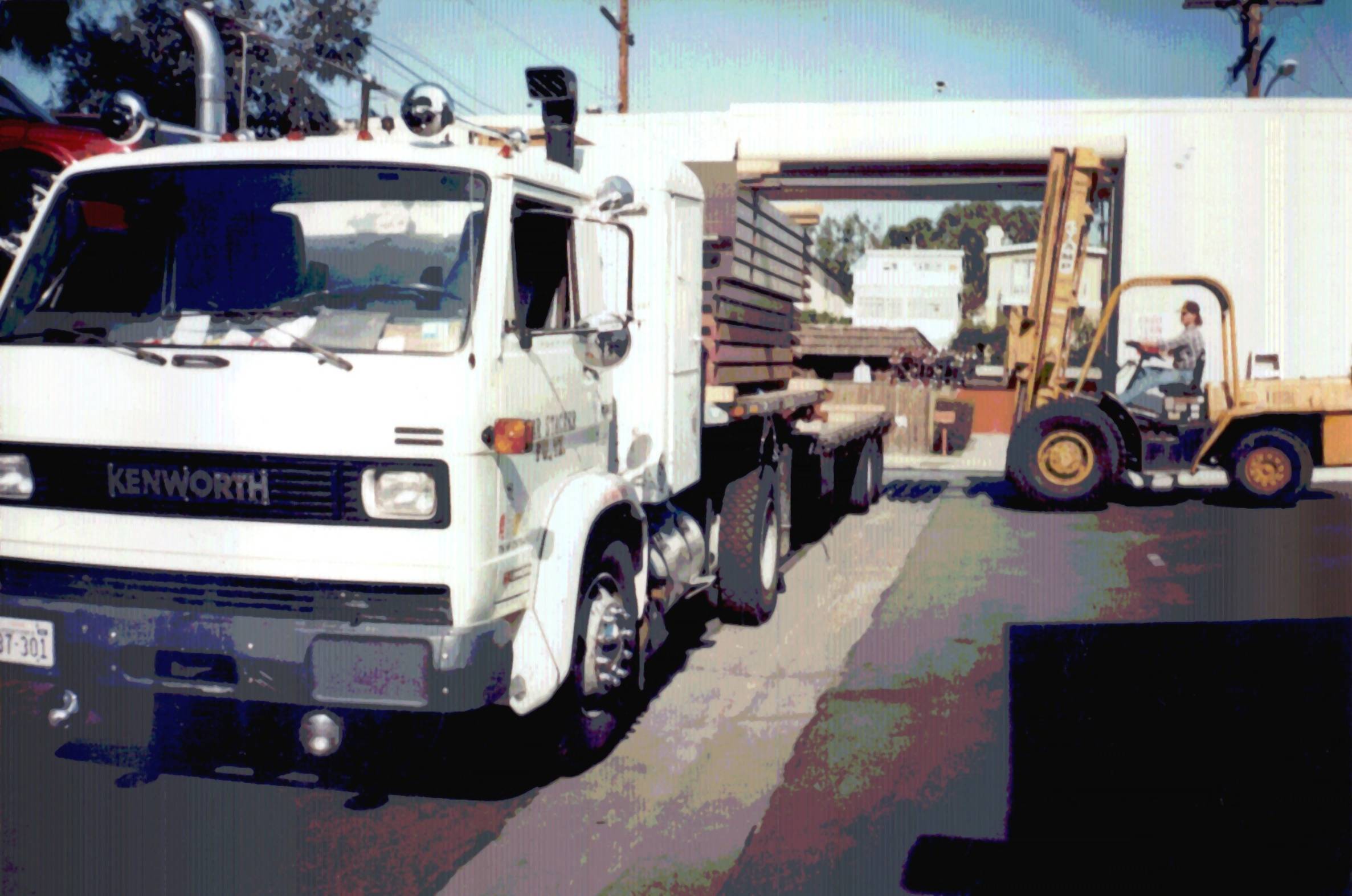

    Getting my truck unloaded
    Vertical car parking machine - GIF-ag04_005-fix-flaw.jpg

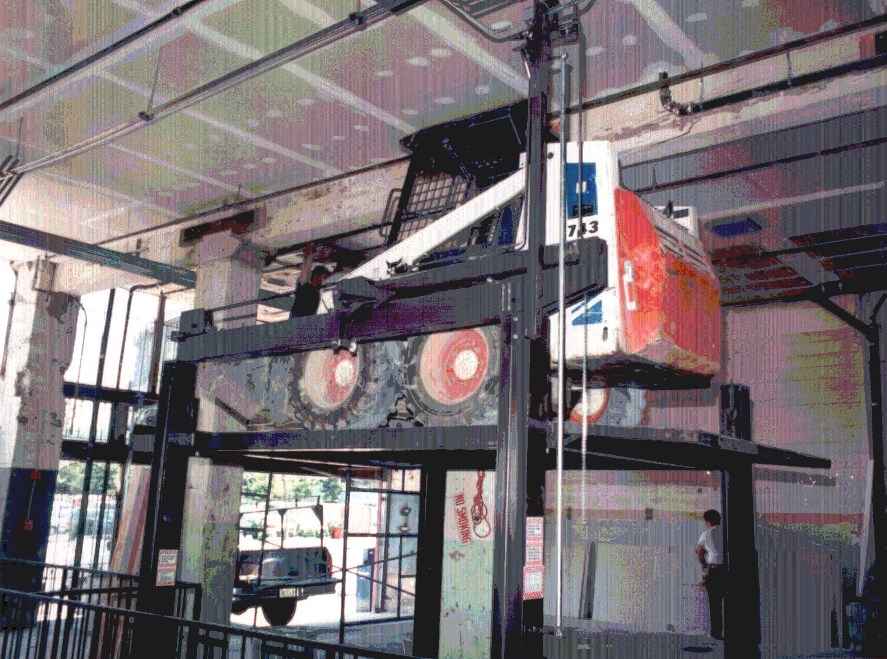

    testing an install
    Vertical car parking machine - GIF-ag05_015.jpg3.jpg

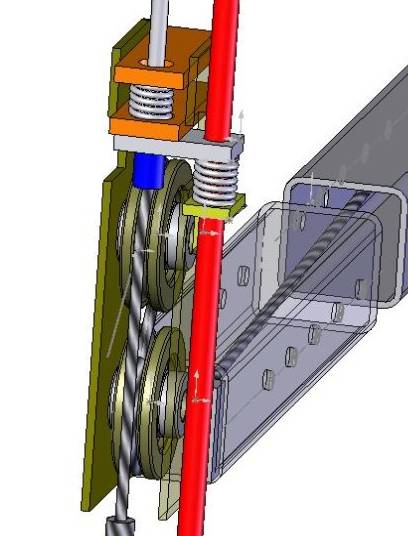

    Cable break safety device
    Vertical car parking machine - GIF-slack-safety-cables.jpg

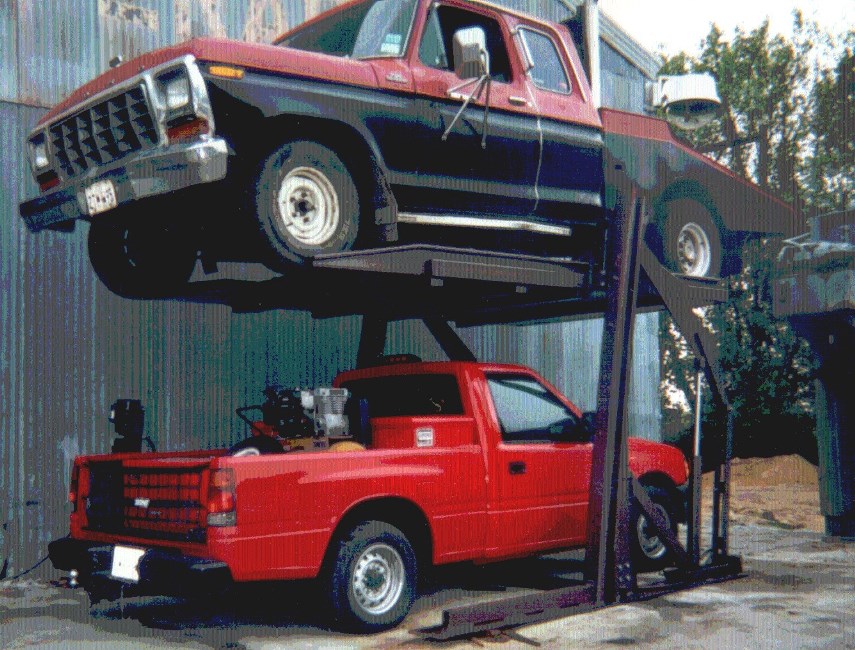

    2 leg cantlevered
    Vertical car parking machine - GIF-ag05_013bb.jpg
    Even 1 leg

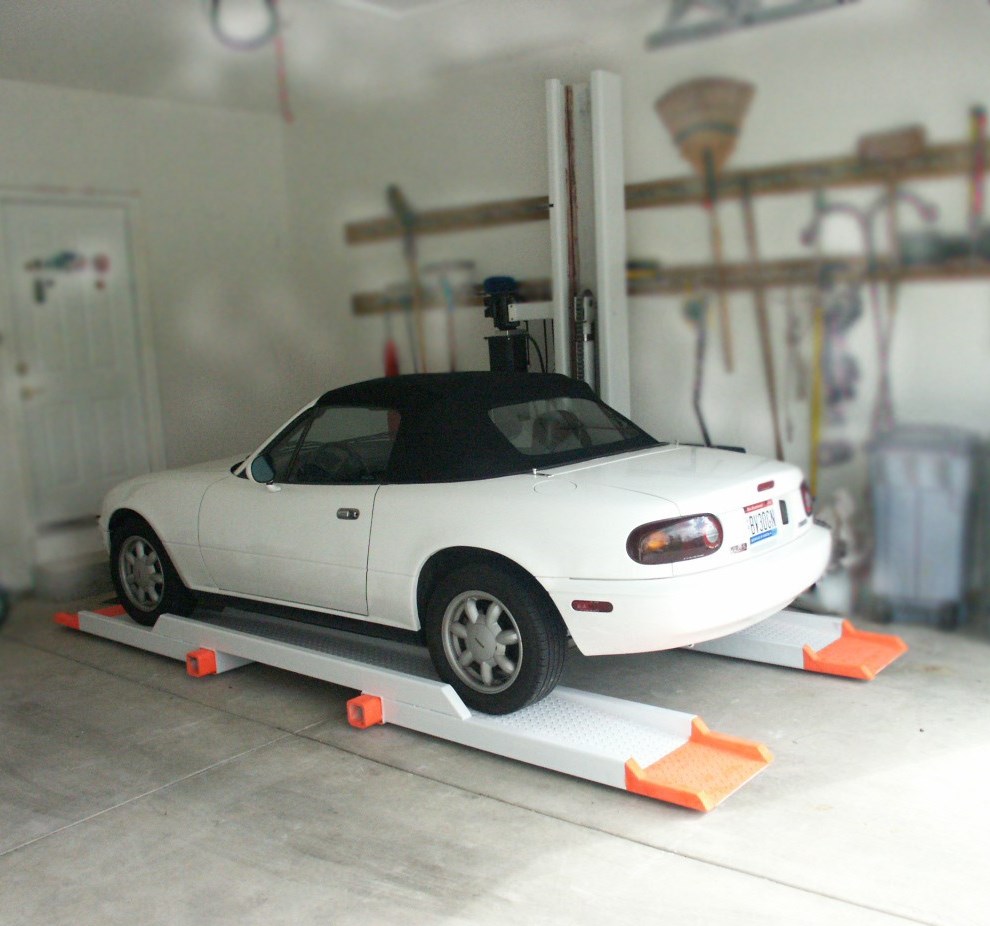

    Vertical car parking machine - GIF-singlepostmaximumonecc.jpg

    2,000+ Tool Plans
