    useful charts or calculators for working metals and other materials

    I used to have a very large folder called table of specs with over 100 sub folders and 1000's of files in each of them. Now not so much but I decided that some of the ones I still have might be useful to others at least they will be all in one place
    Feel free to add your own files to this thread maybe we can populate it is with some of the harder to find data or at the very least we can find it here
    AISI 4140 Alloy Steel heat treating.pdf

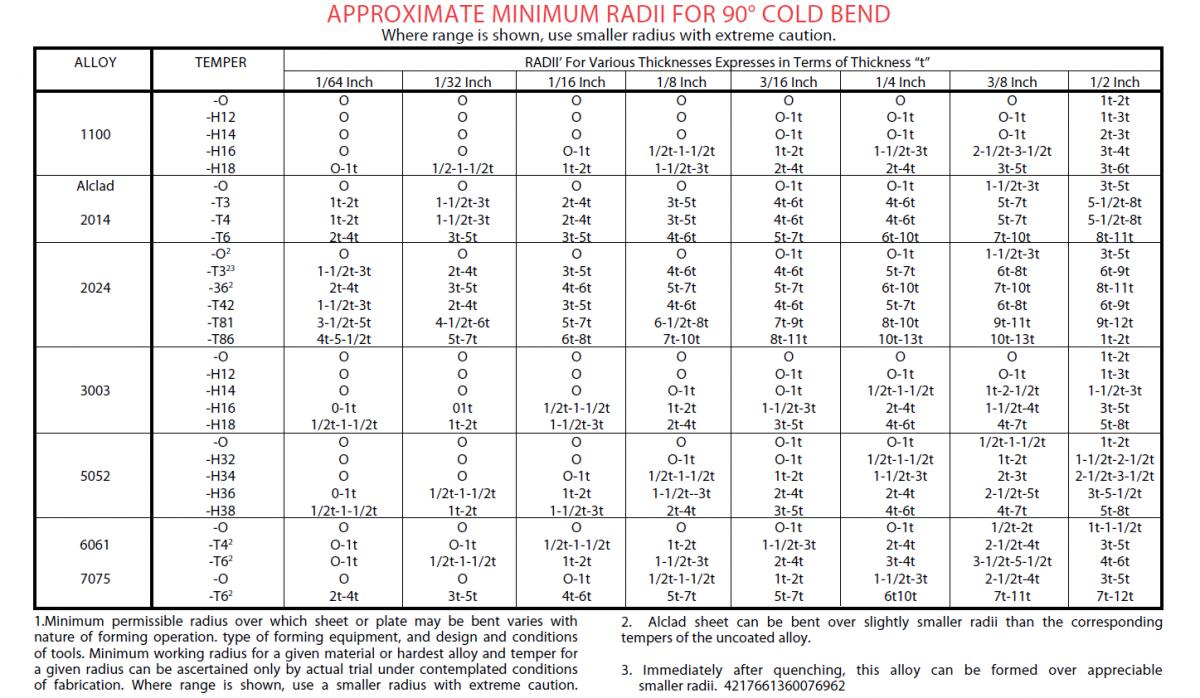

    useful charts or calculators for working metals and other materials-approximate-minimum-radii-90-degree-cold-bend-aluminum-alloys.jpg

    bend_radius.pdf

    -Drill and Tap Chart-Esize.pdf

    Drill Size Conversion Table.pdf

    Minimum Recommended Bend Radius Chart from American Machine Tools Company.pdf

    roll_form_tap_drill_chart.pdf

    Sheet Metal Forming.pdf

    Sheet Metal Thickness Gauges.pdf

    SheetMetal.Me – Air Bend Force Chart.pdf

    SheetMetalair bend force.pdf

    Socket Head Cap Screw Size Chart.pdf

    tap and drill chart.pdf
