    TPG 3

    Greetings from the southern hemisphere,
    many have guessed that this was coming, my new tool post grinder system. This time I think I got it right...phew. Third time lucky they say.
    I just like stuff to work, don't we all?

    regards Stevoh

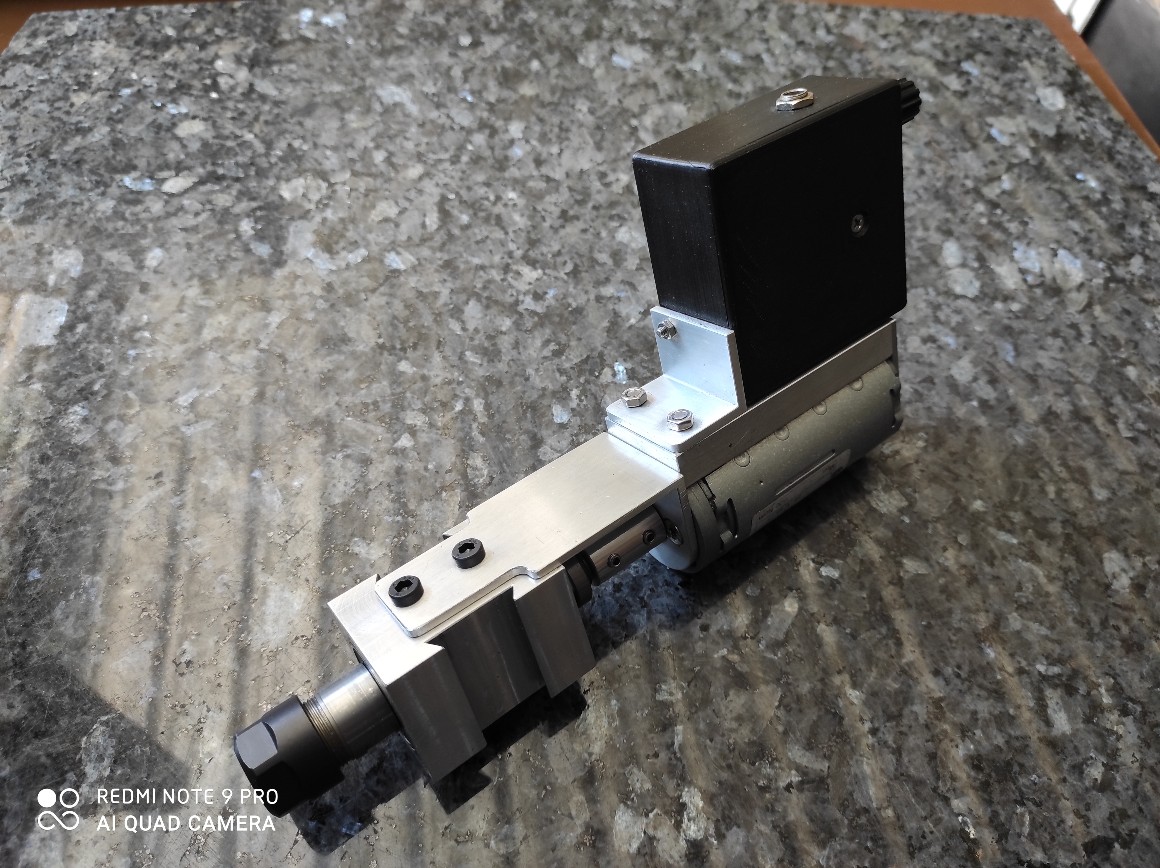

    TPG 3-img_20201118_134805_copy_1160x868.jpg

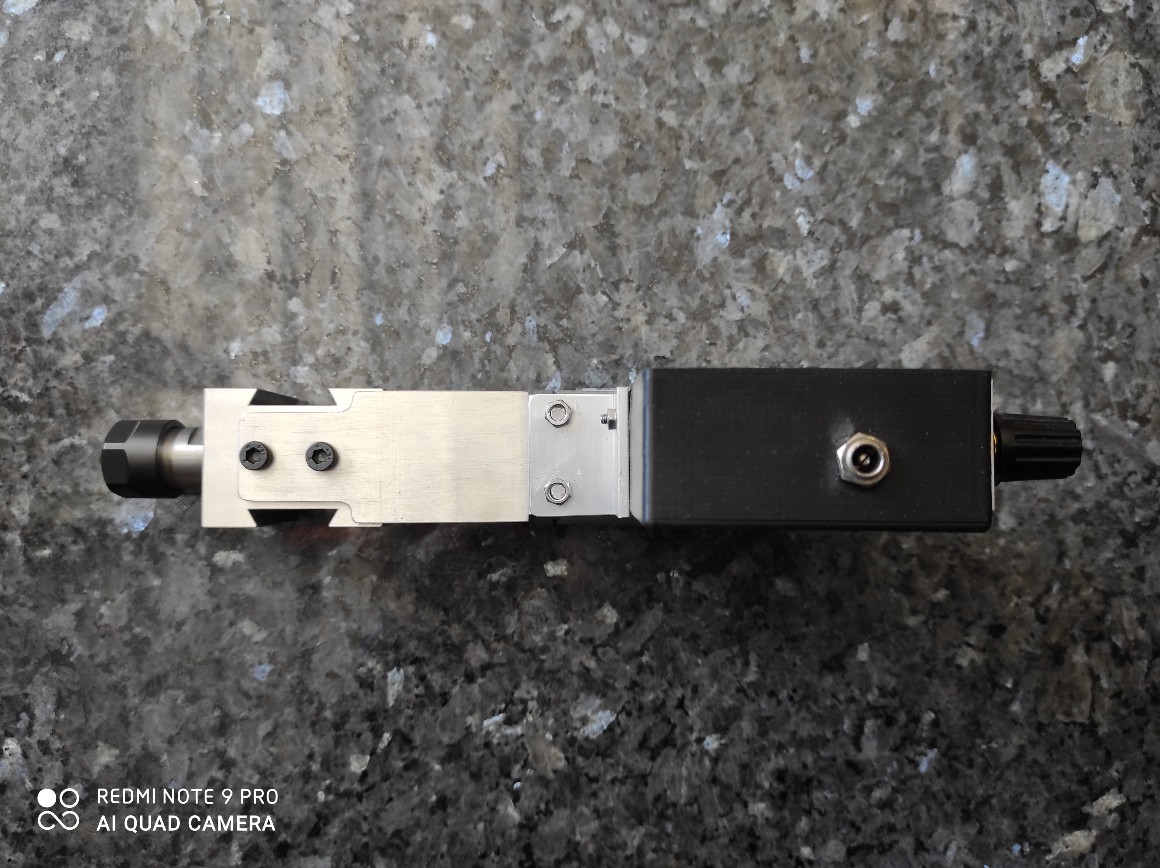

    TPG 3-img_20201118_134830_copy_1160x868.jpg

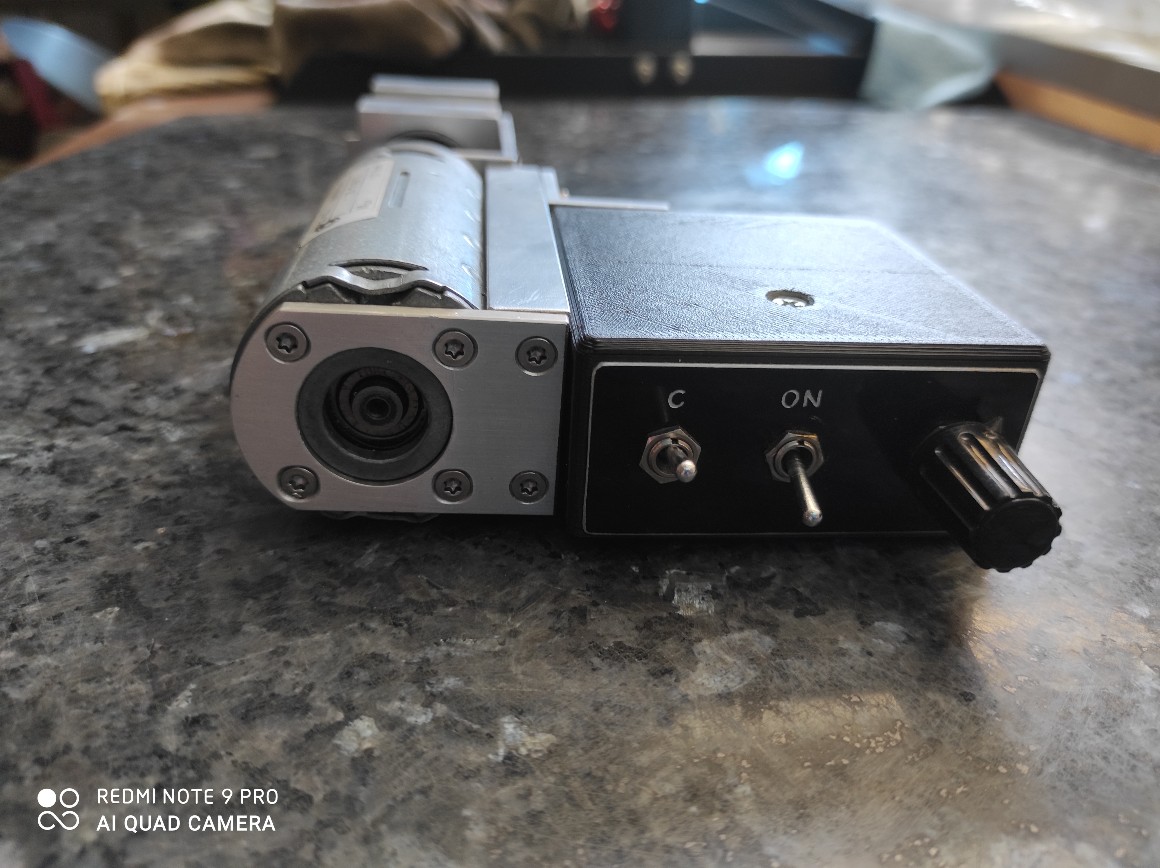

    TPG 3-img_20201118_134854_copy_1160x868.jpg
