    This is a link to my web page showing how I have used the setting gauge to locate a casting on the lathe for fly cutting a 6 1/2" radius. This is a commercially bought setting tool so not as nice as your home made one, but it does the job.

    Practical Engineering

    The Home Engineer

    186 More Best Homemade Tools eBook

  2. #12
    Supporting Member
    Join Date
    Feb 2016
    Posts
    125
    Thanks
    22
    Thanked 21 Times in 19 Posts
    Looks good but not every one has a cross slide like you on the lathe. I bean thinking of building one like you have. There was a seller of castings for that table. Do you know hew that was.

    2,000+ Tool Plans

  3. The Following User Says Thank You to G.Paul For This Useful Post:

    olderdan (Feb 1, 2018)

  4. #13
    Supporting Member thehomeengineer's Avatar
    Join Date
    Nov 2017
    Location
    Berkshire UK
    Posts
    740
    Thanks
    751
    Thanked 2,191 Times in 429 Posts

    thehomeengineer's Tools
    Hi G.Paul
    Sorry I don’t know who makes any castings for the auxiliary cross slide plate.
    I’m not sure if you have followed any of my other posts but I am bit of a skip diver/dumpster diver depending on which side of the pond you are. This was another one of those scrap yard finds, a nice piece of ground plate which I then machined to suit the Colchester cross-slide and then drilled and tapped the M12 fixings holes.

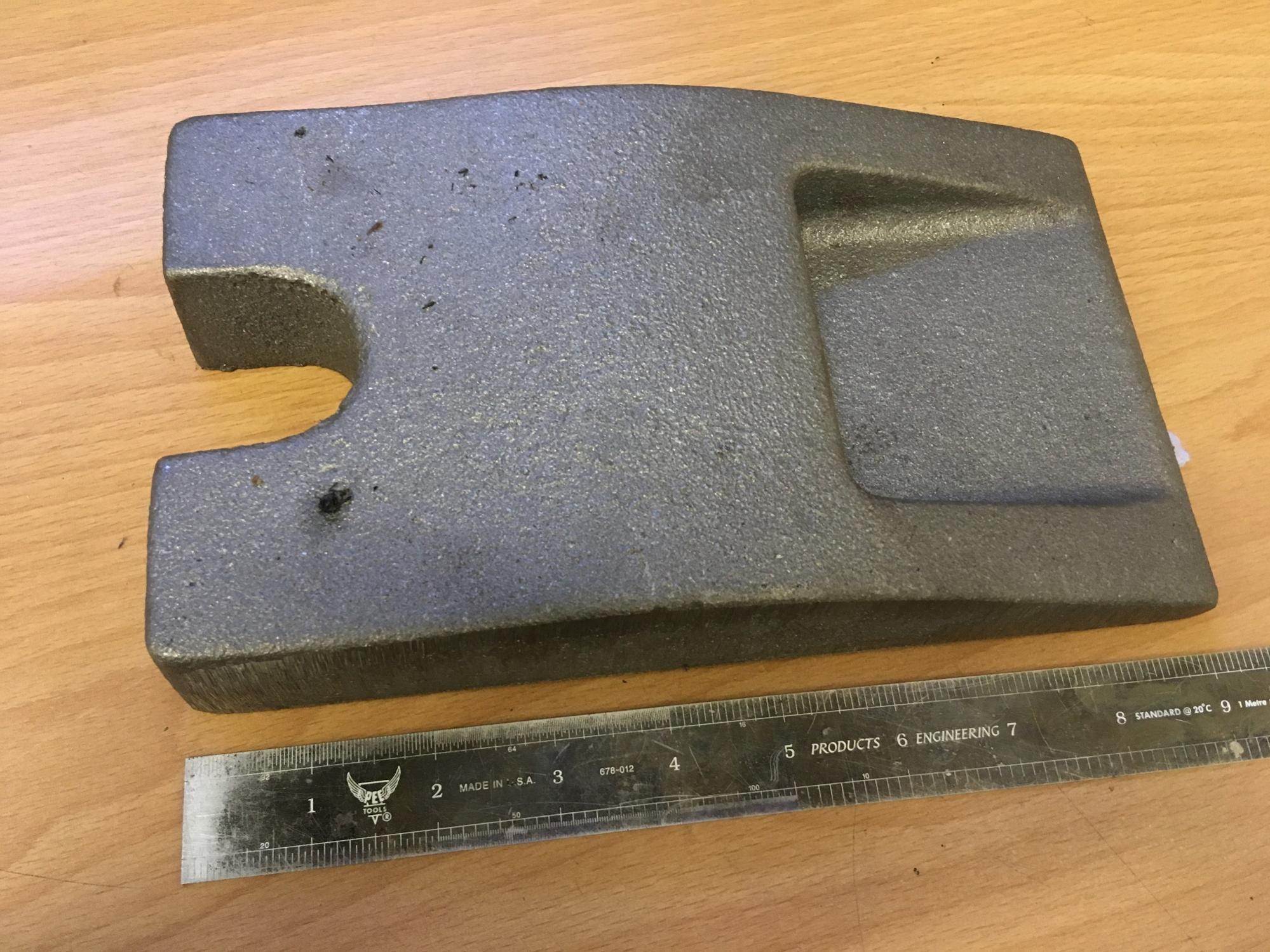

    On finding items. This was in a skip yesterday a nice piece of cast iron. It’s from a desk lamp base, all I had to do was remove the plastic case which was only clipped together. Again, a very usable piece of stock I can cut pieces out of.

    -Simplest of all tool setter-img_0644.jpg

    The Home Engineer

  5. #14
    Supporting Member olderdan's Avatar
    Join Date
    Jun 2016
    Posts
    793
    Thanks
    1,463
    Thanked 1,586 Times in 470 Posts

    olderdan's Tools
    Hi G.Paul

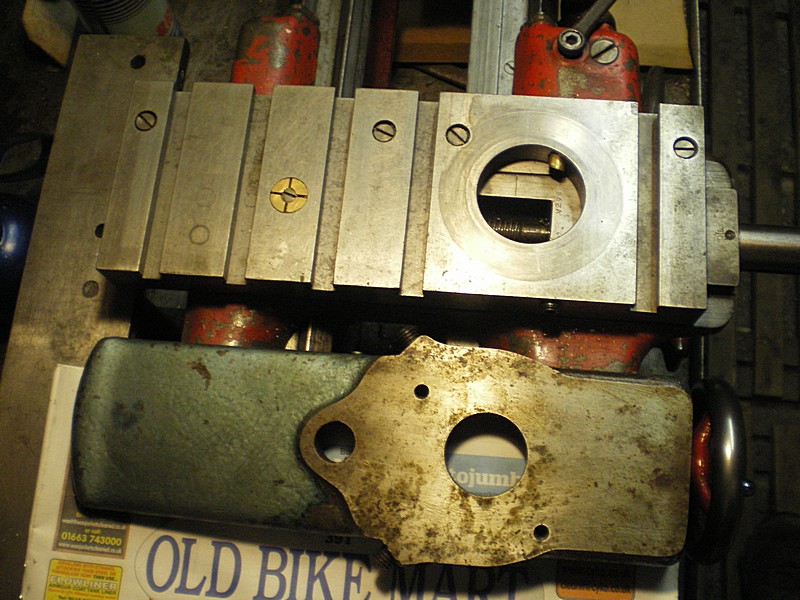

    What sort of lathe do you have?, this is a pic of a Myford crosslide table fitted to a South Bend alongside the original, just had to make a new gib strip and a base for topslide. Many possibility's for adaption and mods.
    Simplest of all tool setter-imgp0011.jpg
    Last edited by olderdan; Feb 1, 2018 at 01:33 PM. Reason: ommision

  6. The Following 3 Users Say Thank You to olderdan For This Useful Post:

    Paul Jones (Feb 1, 2018), PJs (Feb 4, 2018), thehomeengineer (Feb 1, 2018)

  7. #15
    Supporting Member Captainleeward's Avatar
    Join Date
    Jul 2014
    Location
    San DIEGO, California
    Posts
    1,097
    Thanks
    496
    Thanked 1,336 Times in 525 Posts

    Captainleeward's Tools
    I like it, I like it alot....:O)

  8. The Following User Says Thank You to Captainleeward For This Useful Post:

    olderdan (Feb 8, 2018)

  9. #16
    Supporting Member
    Join Date
    Feb 2016
    Posts
    125
    Thanks
    22
    Thanked 21 Times in 19 Posts
    If i make a cross slide table it would be for my 16" South Bend lathe that has a long enough bed so i could use it for line boring. There was i believe some one in the eastern part of the US that sold castings for smaller lathes. My friend ho is a model/pattern maker has a 16" lathe with T-slotes
