    Quote Originally Posted by Frank S View Post
    That would be the only way the thing could make any sense. much like the 2 man hand cars one guy pumps down while the other guy pulls up and vice versa
    why would you not employ your most powerful limbs while sitting down
    Yeah, if it weren't for an independent braking system, I could see someone getting beat to death by the hand levers on a downhill run. Yikes!

    This subject has renewed my interest in transforming my motorized recumbent bike into a rail bike for exploring the backcountry.

    186 More Best Homemade Tools eBook
    Last edited by Gadgeteer; Oct 20, 2020 at 01:48 AM.

  2. #12
    Supporting Member
    Join Date
    Apr 2014
    Posts
    444
    Thanks
    238
    Thanked 202 Times in 105 Posts

    Gadgeteer's Tools

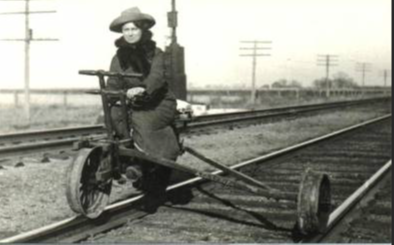

    While researching info about the velocipedes I ran across this old photo of Annie Oakley, carrying an AR-15 in her backpack.
    Attached Thumbnails Attached Thumbnails Railroad handcar - photo-annie-oakley.png

    2,000+ Tool Plans

  3. The Following User Says Thank You to Gadgeteer For This Useful Post:

    Toolmaker51 (Oct 20, 2020)

  4. #13
    Supporting Member Karl_H's Avatar
    Join Date
    Sep 2013
    Posts
    911
    Thanks
    671
    Thanked 481 Times in 266 Posts

    Karl_H's Tools
    Jump to 1:40 to see it running. Lots of leg power as well as arm power.
    (This first photo is from way up the evolution of personal rail vehicles.)


  5. The Following User Says Thank You to Karl_H For This Useful Post:

    Toolmaker51 (Oct 25, 2020)

  6. #14
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Krasnodar Krai, Russian Federation
    Posts
    1,469
    Thanks
    127
    Thanked 768 Times in 426 Posts

    jdurand's Tools
    I have an exercise machine rigged up like that. Foot rests on pivot attached to the handlebars. The handlebars/feed raise and lower the seat with a car shock to add resistance. So, the bigger you are the more you have to work.

  7. #15
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,444
    Thanks
    8,100
    Thanked 40,249 Times in 11,776 Posts
    On display at the Saskatchewan Railway Museum.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...m_fullsize.jpg


  8. The Following User Says Thank You to Jon For This Useful Post:

    clydeman (Oct 24, 2020)

  9. #16
    Supporting Member Hoosiersmoker's Avatar
    Join Date
    Mar 2018
    Posts
    1,863
    Thanks
    415
    Thanked 365 Times in 291 Posts
    Something wrong with the way this one is set up. There is a foot peg on the near side for the left foot but the arm to the outrigger wheel is directly in the way of that foot peg. In the two following pics (from the opposite side) you can see the attachment point of the outrigger is back with the arm angling forward from the main frame and no "stabilizer" rod. Looks like the arm in the first photo should be flipped and attached where that rod is mounted?

  10. #17
    Supporting Member Hoosiersmoker's Avatar
    Join Date
    Mar 2018
    Posts
    1,863
    Thanks
    415
    Thanked 365 Times in 291 Posts
    Also, not sure how much "coast" you would have? Looks to be direct gear drive to me.

  11. #18
    Supporting Member
    Join Date
    Apr 2014
    Posts
    444
    Thanks
    238
    Thanked 202 Times in 105 Posts

    Gadgeteer's Tools
    Quote Originally Posted by Hoosiersmoker View Post
    Something wrong with the way this one is set up. There is a foot peg on the near side for the left foot but the arm to the outrigger wheel is directly in the way of that foot peg. In the two following pics (from the opposite side) you can see the attachment point of the outrigger is back with the arm angling forward from the main frame and no "stabilizer" rod. Looks like the arm in the first photo should be flipped and attached where that rod is mounted?
    Perhaps the paint worn off of the angular support rod is evidence that the left foot peg was not used, since the left foot was placed on the rod.

  12. #19
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,444
    Thanks
    8,100
    Thanked 40,249 Times in 11,776 Posts

  13. #20
    Supporting Member
    Join Date
    Apr 2014
    Posts
    444
    Thanks
    238
    Thanked 202 Times in 105 Posts

    Gadgeteer's Tools
    Quote Originally Posted by Jon View Post
    Hmmm, no seat belts on the bench. But, it does look like there is a foot brake for each pedaler, and seat-retention cables for the pedalers' seats. Also, there are front bumpers, just in case a large animal is encountered, while rolling down the track. It appears that the pedals are in sync, so that the people providing propulsion apply force in tandem.
    Last edited by Gadgeteer; Oct 27, 2020 at 10:29 PM.
