    Not exactly lightweight, yet there's evidence of weight reduction. Notice the wheels are 3 different sizes? Appears similar to child's pump car, and probably has ability to coast, so remaining weight stores inertia.

    PS. If a compact, 60's era Renault had only 3 lug nuts per wheel, why does the hand car outboard wheel get 6?

    2,000+ Tool Plans
    Last edited by Toolmaker51; Oct 18, 2020 at 07:01 PM. Reason: enquiring minds want to know!
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  4. #3
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,622
    Thanks
    2,178
    Thanked 9,118 Times in 4,364 Posts

    Frank S's Tools
    obviously a sit down rig but where did they rest their feet?
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  5. #4
    Supporting Member
    Join Date
    Apr 2014
    Posts
    442
    Thanks
    233
    Thanked 200 Times in 105 Posts

    Gadgeteer's Tools
    Quote Originally Posted by Frank S View Post
    obviously a sit down rig but where did they rest their feet?
    Paint is worn off of triangulating rod to outboard wheel, so probably, supported left foot. Right foot???

  6. #5
    Supporting Member
    Join Date
    Apr 2014
    Posts
    442
    Thanks
    233
    Thanked 200 Times in 105 Posts

    Gadgeteer's Tools
    Quote Originally Posted by Toolmaker51 View Post
    Not exactly lightweight, yet there's evidence of weight reduction. Notice the wheels are 3 different sizes? Appears similar to child's pump car, and probably has ability to coast, so remaining weight stores inertia.

    PS. If a compact, 60's era Renault had only 3 lug nuts per wheel, why does the hand car outboard wheel get 6?
    Could be that outboard wheel was repurposed from another cart of sorts.

  7. #6
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,622
    Thanks
    2,178
    Thanked 9,118 Times in 4,364 Posts

    Frank S's Tools
    Quote Originally Posted by Gadgeteer View Post
    Paint is worn off of triangulating rod to outboard wheel, so probably, supported left foot. Right foot???
    The right foot would be for the flintstones braking feature
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  8. #7
    Supporting Member
    Join Date
    Apr 2014
    Posts
    442
    Thanks
    233
    Thanked 200 Times in 105 Posts

    Gadgeteer's Tools

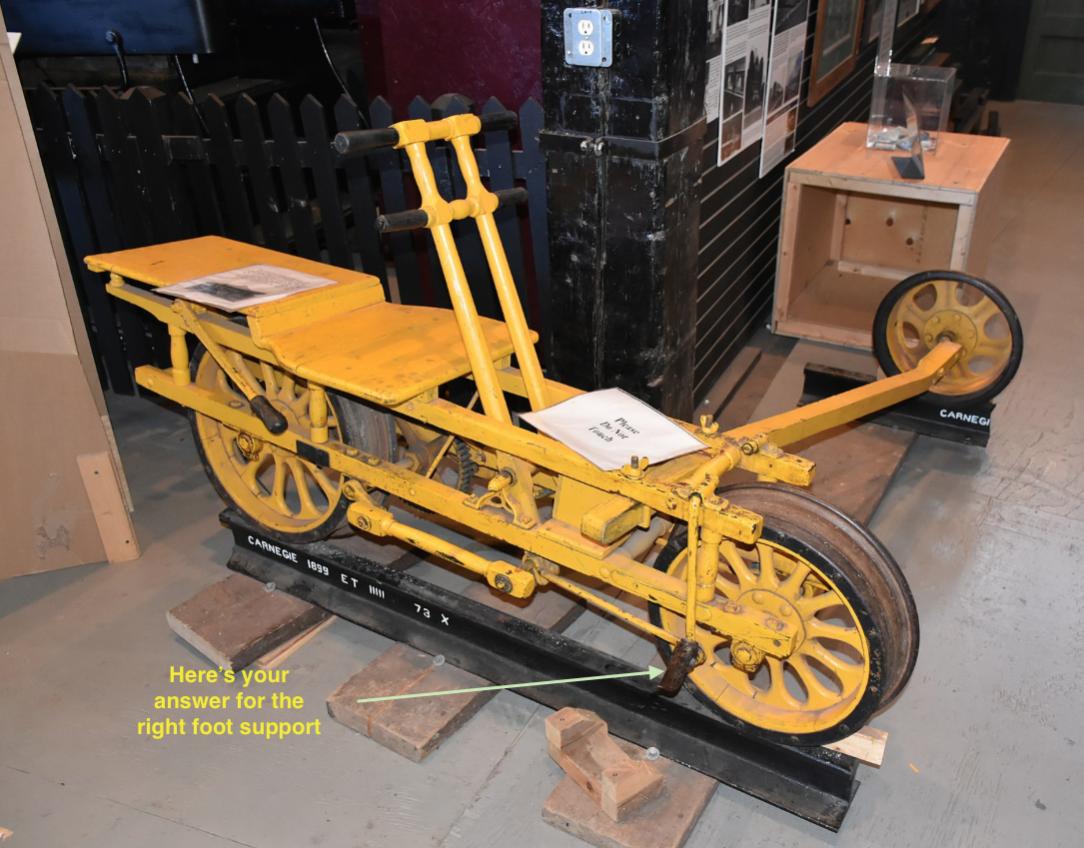

    Right foot support. Click on photo to enlarge.
    Attached Thumbnails Attached Thumbnails Railroad handcar - photo-foot-support.jpg

  9. #8
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,622
    Thanks
    2,178
    Thanked 9,118 Times in 4,364 Posts

    Frank S's Tools
    Quote Originally Posted by Gadgeteer View Post
    Right foot support. Click on photo to enlarge.
    Well it is the braking feature just not quite flintstones
    I can just imagine the guy pumping the tillers and using his feet as support and something to push against all the while every time he pushed with his right foot he would halt any progress made by his arms
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  10. #9
    Supporting Member
    Join Date
    Apr 2014
    Posts
    442
    Thanks
    233
    Thanked 200 Times in 105 Posts

    Gadgeteer's Tools

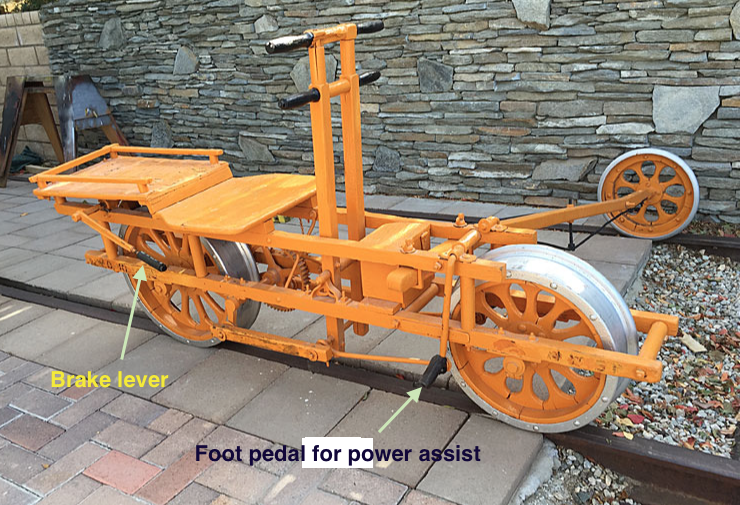

    On a deeper dive it appears that the foot pegs are to add a bit of assist to the hand/arm power-application lever.

    Braking is, probably, accomplished by use of the hand lever to the rear and side of the seat. Parking brake, too.
    Attached Thumbnails Attached Thumbnails Railroad handcar - photo-velcocipede-2.png
    Last edited by Gadgeteer; Oct 19, 2020 at 11:47 PM.

  11. #10
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,622
    Thanks
    2,178
    Thanked 9,118 Times in 4,364 Posts

    Frank S's Tools
    Quote Originally Posted by Gadgeteer View Post
    On a deeper dive it appears that the foot pegs are to add a bit of assist to the hand/arm power-application lever.

    Braking is, probably, accomplished by use of the hand lever to the rear and side of the seat. Parking brake, too.
    That would be the only way the thing could make any sense. much like the 2 man hand cars one guy pumps down while the other guy pulls up and vice versa
    why would you not employ your most powerful limbs while sitting down
