    Measuring Tape Dispenser


    Measuring Tape Dispenser Plans for Sale - $10.00



    $10.00 - Click here to buy now via PayPal and download instantly

    30-day money-back guarantee.
    If you purchase these plans and are not 100% satisfied, we'll refund your purchase price.







    These plans include:

    • A 31-page PDF manual with:
    • 43 color photos.
    • 9 technical drawings.
    • Highly-detailed build instructions.
    • A complete Bill of Materials

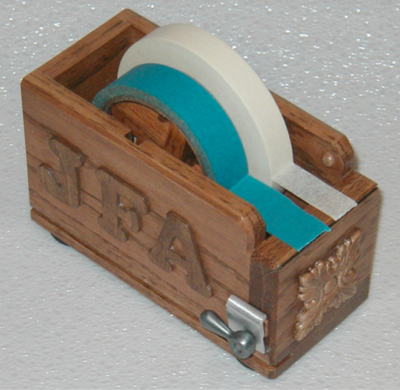

    Ever need to dispense a measured amount of tape? Do you want a handsome tape dispenser that is fit for the finest office in the land? Tired of ridiculously high prices for a tape dispenser that looks like a lump of plastic? Well, here is your chance to make a very nice looking dispenser which will allow you to dispense exactly the amount of tape that you want.

    In addition to the detailed, dimensioned drawings, this plan takes you through the construction of this unique tape dispenser step-by-step. In addition to the wood parts, it describes in detail how to make the simple metal parts with common tools that are in every wood shop.

    Be the envy of your co-workers with a tape dispenser that they can not just go out and buy.


    Features Include:

    • Holds standard 3" tape rolls.
    • Can hold one wide roll (2") or two narrow ones.
    • Detachable measuring arm easily and quickly adjusts to desired size.
    • Built-in scale for precise measure.
    • Scale can be adjusted for lengths up to 14 inches.


    Feel free to post any questions you may have in this discussion, either before you purchase or during construction. I DO monitor this thread and will answer all questions. Or, post pictures of your finished measuring tape dispenser.
