    Question How did they made these ...in XVI century?

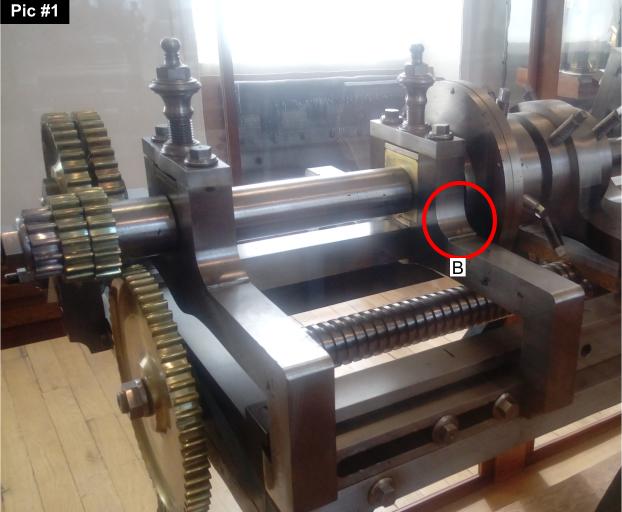

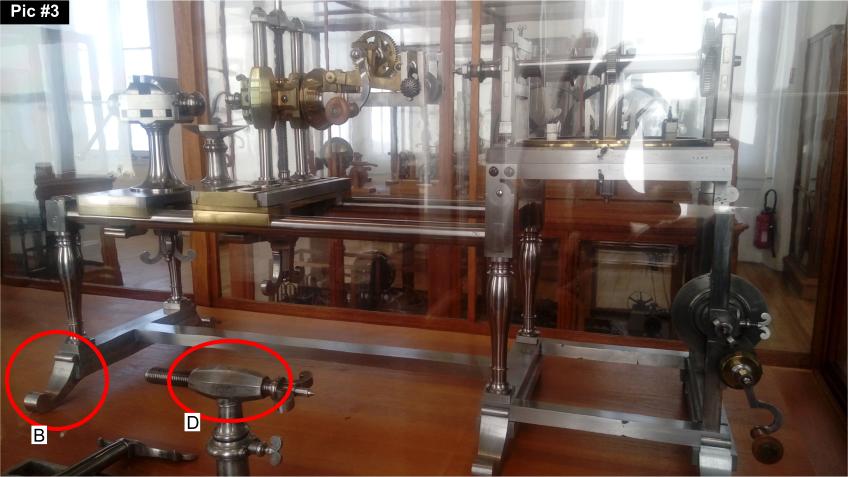

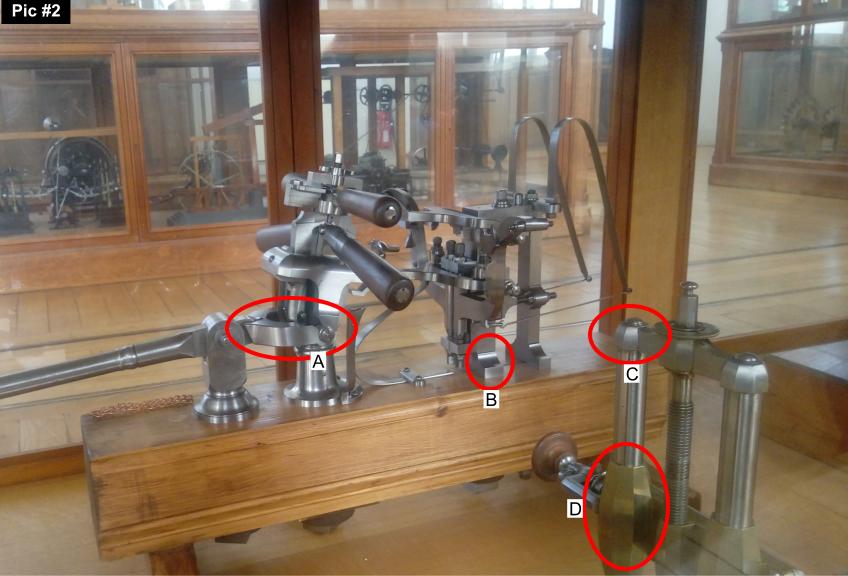

    I'm always mermerized when I see the machines made in the past, and I wonder how did they made them. In particular how did they made the parts that I've highlighted with red circles? Say the parts tagged A or B, did they made them with a hack saw and a file?? ...sooo precise?
    And what about the parts tagged C and D?
    (The machine in picture 2 and 3 were made by Vaucanson in 1783. I taken these pictures at the Musee des Art et Metiers in Paris, in 2019.)

    How did they made these ...in XVI century?-pic1.jpgHow did they made these ...in XVI century?-pic2.jpgHow did they made these ...in XVI century?-pic3.jpg

    186 More Best Homemade Tools eBook
    Last edited by Claudio HG; Aug 10, 2020 at 05:31 AM.

  2. The Following User Says Thank You to Claudio HG For This Useful Post:

    Scotsman Hosie (Aug 11, 2020)

  3. #2
    Supporting Member DIYSwede's Avatar
    Join Date
    May 2019
    Location
    Stockholm, Sweden...
    Posts
    634
    Thanks
    417
    Thanked 805 Times in 319 Posts

    DIYSwede's Tools
    Perhaps some more in this post, Claudio?

    1751 metal lathe - photo

    2,000+ Tool Plans

  4. The Following User Says Thank You to DIYSwede For This Useful Post:

    Scotsman Hosie (Aug 11, 2020)

  5. #3
    Supporting Member mklotz's Avatar
    Join Date
    Aug 2015
    Location
    LA, CA, USA
    Posts
    3,525
    Thanks
    362
    Thanked 6,559 Times in 2,161 Posts

    mklotz's Tools
    Give artisans and craftsmen plenty of time and the results can be incredible.

    Some of the circled features are non-functional. They're beautifully done but aren't necessarily "precise" if closely measured. Still, to the eye, they appear "precise" and enhance the perceived precision of the machine of which they are part.

    Similar high quality work is still being done today. Machinists regularly scrape surface plates/lathe ways/level bases to incredible flatness. Replicators of the Antikythera mechanism hand divide and hand file gears. Hand filing an hexagonal hole in a plate and a hexagonal shape that would fit closely in all three orientations was a common apprentice task back in the day.

    On the artistic side, consider sculptors. Michelangelo took chisels to a block of marble and created the David, a stunningly precise representation of the human form. Remington's bronzes are completely lifelike miniatures.

    Give a troop of humans some hammers, chisels and files, come back in a few years, and voila, there's a locomotive.

    https://en.wikipedia.org/wiki/Richard_Trevithick
    ---
    Regards, Marv

    Failure is just success in progress
    That looks about right - Mediocrates

  6. The Following 3 Users Say Thank You to mklotz For This Useful Post:

    mwmkravchenko (Aug 11, 2020), Scotsman Hosie (Aug 11, 2020), toeless joe (Aug 10, 2020)

  7. #4
    Supporting Member DIYSwede's Avatar
    Join Date
    May 2019
    Location
    Stockholm, Sweden...
    Posts
    634
    Thanks
    417
    Thanked 805 Times in 319 Posts

    DIYSwede's Tools
    Can't resist putting up a reminder of the eminent literary link in this post:

    World's Oldest Micrometer - 1776! Who made this thing??

    "Tools for the job. A short history of machine tools" by L.T.C. Rolt
    1st pub: Charles Churchill & Co, 1965

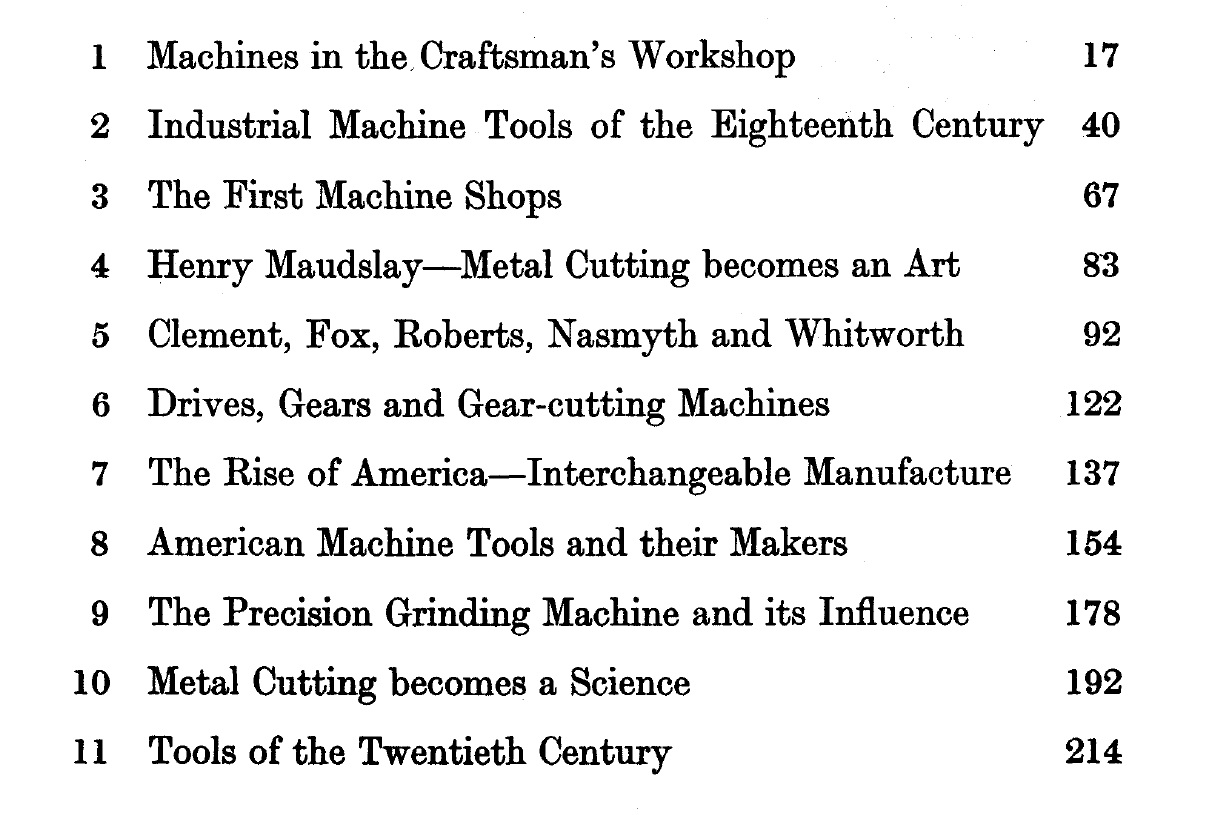

    Chapter index:
