    Mesta Machine Company rope drive wheel. Homestead, PA. 1905/1925.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...l_fullsize.jpg


    2,000+ Tool Plans

  3. The Following 2 Users Say Thank You to Jon For This Useful Post:

    jimfols (Jul 24, 2022), mr mikey (Jul 24, 2022)

  4. #783
    Supporting Member jimfols's Avatar
    Join Date
    Sep 2015
    Location
    Ontario Calif USA
    Posts
    853
    Thanks
    2,151
    Thanked 547 Times in 288 Posts
    782

    I never knew that.

    High-quality black-and-white photographs of large old machines and tools-rope-drive.jpg

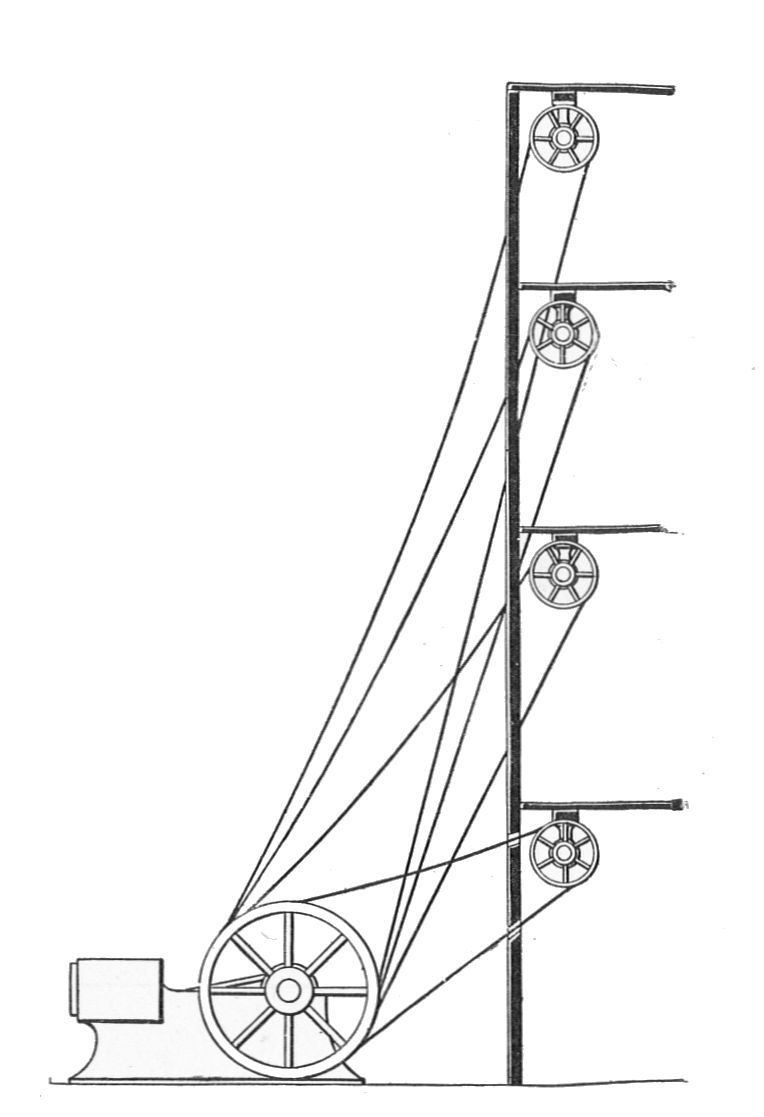

    Multiple rope drives driving lineshafts on each factory floor
    Jim

  5. #784
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,939
    Thanks
    775
    Thanked 382 Times in 308 Posts
    yup I saw that somewhere I visited. them smart fellers, split the power to any where in the factory.up down over change ratio for something I was amazed whay all they had done with it many many years ago. the down side is...when the power head stops it all stops. but there are addvantages to just one power unit, like put it outa the way.heat,noise etc.

  6. #785
    Supporting Member mr mikey's Avatar
    Join Date
    May 2022
    Location
    Michigan
    Posts
    299
    Thanks
    1,006
    Thanked 65 Times in 50 Posts

    mr mikey's Tools
    Good stuff. When I was a kid I liked going to Greenfield Village in Dearborn Mi. and always spent the most time in the machine shop, all belt driven. I think I need another trip there. Mr Mikey.

  7. #786
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,939
    Thanks
    775
    Thanked 382 Times in 308 Posts
    when my wife retires ,I... we hope to travel the country and see lots of stuff like that. thats if there is still a country to see.

  8. #787
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    2,665
    Thanks
    251
    Thanked 1,514 Times in 855 Posts

    hemmjo's Tools
    What am I missing?

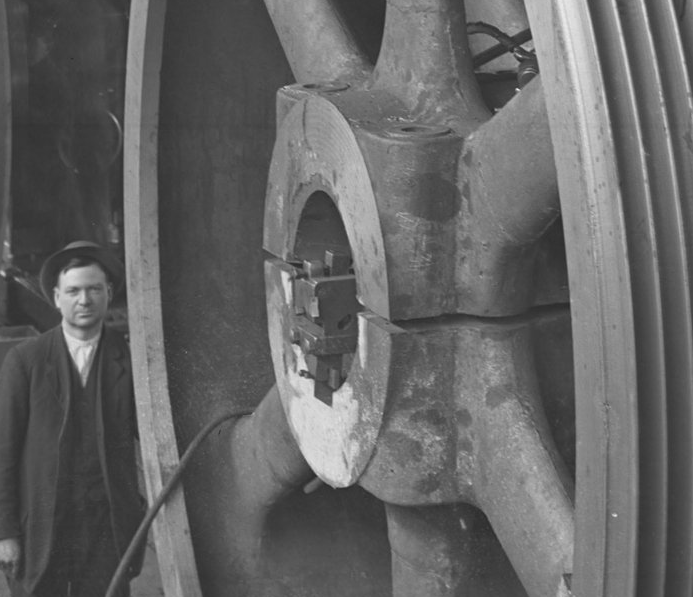

    I am looking at that massive "wheel" which appears to be cast in one piece. The hub is bored and spilt. They appear to be cutting the keyway. There appears to be 4 bolts to clamp the hub to the shaft by squeezing the 2 halves of the hub together. Each half of the hub is attached to the outer rim rim of the wheel by 3 stout spokes.

    Something has to move when they squeeze that hub down onto the shaft. Does it flex that massive wheel?

    High-quality black-and-white photographs of large old machines and tools-massive-hub.png

  9. #788
    Supporting Member mr mikey's Avatar
    Join Date
    May 2022
    Location
    Michigan
    Posts
    299
    Thanks
    1,006
    Thanked 65 Times in 50 Posts

    mr mikey's Tools
    Hello, I'm just guessing, maybe the shaft and bore clearance is slightly press fit then when the clamping bolts are torqued as runout is measured its in spec.? also since belts are running at a slow rpm its not considered an issue.? Mr Mikey.

  10. #789
    Supporting Member mklotz's Avatar
    Join Date
    Aug 2015
    Location
    LA, CA, USA
    Posts
    3,525
    Thanks
    362
    Thanked 6,559 Times in 2,161 Posts

    mklotz's Tools
    If you want to see one (all right, a much smaller one) in action...

    ---
    Regards, Marv

    Failure is just success in progress
    That looks about right - Mediocrates

  11. The Following 2 Users Say Thank You to mklotz For This Useful Post:

    jimfols (Jul 25, 2022), Ralphxyz (Jul 25, 2022)

  12. #790
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,334
    Thanks
    7,044
    Thanked 3,011 Times in 1,900 Posts

    Toolmaker51's Tools
    Quote Originally Posted by hemmjo View Post
    What am I missing?

    I am looking at that massive "wheel" which appears to be cast in one piece. The hub is bored and spilt. They appear to be cutting the keyway. There appears to be 4 bolts to clamp the hub to the shaft by squeezing the 2 halves of the hub together. Each half of the hub is attached to the outer rim rim of the wheel by 3 stout spokes.

    Something has to move when they squeeze that hub down onto the shaft. Does it flex that massive wheel?

    Click image for larger version.

Name:	massive hub.png
Views:	94
Size:	339.3 KB
ID:	43315
    Exactly right, but only the hub, there aren't spokes across the center.
    The cutter head has a tapered arrangement with set screws to control depth. Boring a split hub is common, the gap is shimmed and clamped, the same torque on fasteners secures on shaft at installation.
    It looks like a boring mill, so must be using the quill Z axis as a broach, like a lathe chucked part, cutter driven by carriage. Possibly, that era had a mechanism to run the quill in and out without rotating spindle?
    However, can't imagine a spindle within a square quill, I believe the machine is a shaper.

    An alternative would Z the table; but this is a floor machine, not table type. Floor machines are considered 'portable', they secure the column at the part, the 'floor' actually is a giant Tee slotted plate. Dialing in a part, isn't a couple handles like a Bridgeport.
    Along with all that, the bore could have been done in a vertical lathe. The casting has been turned, those grooves ain't cast, an concentricity included. Biggest I've heard of was 33'; if man in picture is 5'5'', that's an 16' to 18' sheave.

    But, here's a 42' Industrial History: Big Machine Tools

    https://newatlas.com/the-citroen-che...3868/?amp=true
    Last edited by Toolmaker51; Jul 25, 2022 at 02:25 PM. Reason: extra helping of links
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  13. The Following User Says Thank You to Toolmaker51 For This Useful Post:

    hemmjo (Jul 25, 2022)
