    Quote Originally Posted by hemmjo View Post

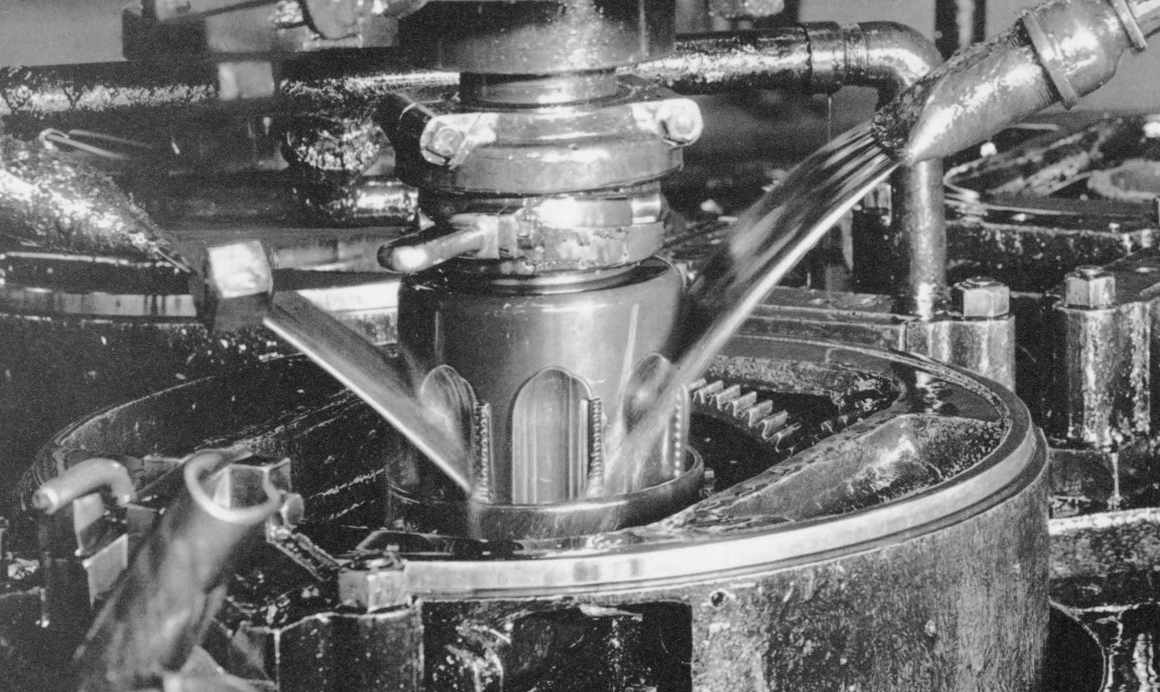

    There is so much going on here. Fascinating to imagine all of the thought and hard work that went into making all of the industry that build our society, and how easily it is lost.

    Attachment 41333
    As I posted elsewhere, it was not lost.
    It was not surrendered.
    It was not outmoded.
    It was given away.

    186 More Best Homemade Tools eBook
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  2. The Following 2 Users Say Thank You to Toolmaker51 For This Useful Post:

    Frank S (Dec 27, 2021), master of none (Mar 23, 2022)

  3. #642
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,373
    Thanks
    8,090
    Thanked 40,142 Times in 11,740 Posts
    Boring mill. Pittsburgh and Lake Erie Railroad Company. July, 1904.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...l_fullsize.jpg


    2,000+ Tool Plans

  4. The Following 3 Users Say Thank You to Jon For This Useful Post:

    jimfols (Jan 2, 2022), schuylergrace (Jan 5, 2022), Toolmaker51 (Jan 2, 2022)

  5. #643
    Supporting Member Isambard's Avatar
    Join Date
    Aug 2019
    Location
    Hawke's Bay, New Zealand
    Posts
    156
    Thanks
    0
    Thanked 55 Times in 35 Posts
    That's a Betts Horizontal Boring Machine. Betts Machine Co. of Wilmington, Del.
    It looks like Manning, Maxwell & Moore supplied it.

  6. #644
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,334
    Thanks
    7,044
    Thanked 3,011 Times in 1,900 Posts

    Toolmaker51's Tools
    re post * 642;
    Boring mill yes, but quite small. In this photo, not set up for boring, that is a 'trip wheel facing head' mounted on the spindle. The 3 pronged "T" is tripped into partial rotation as it swings arc, turning the lead screw, barely visible inside the base [looks like a drill press vise].
    The machine itself is larger yet, this housing is mounted on a accessory table to provide X axis across spindle. farther down is driving end of a Morse Taper line boring rig; and isn't that the planer in the background from several posts back?


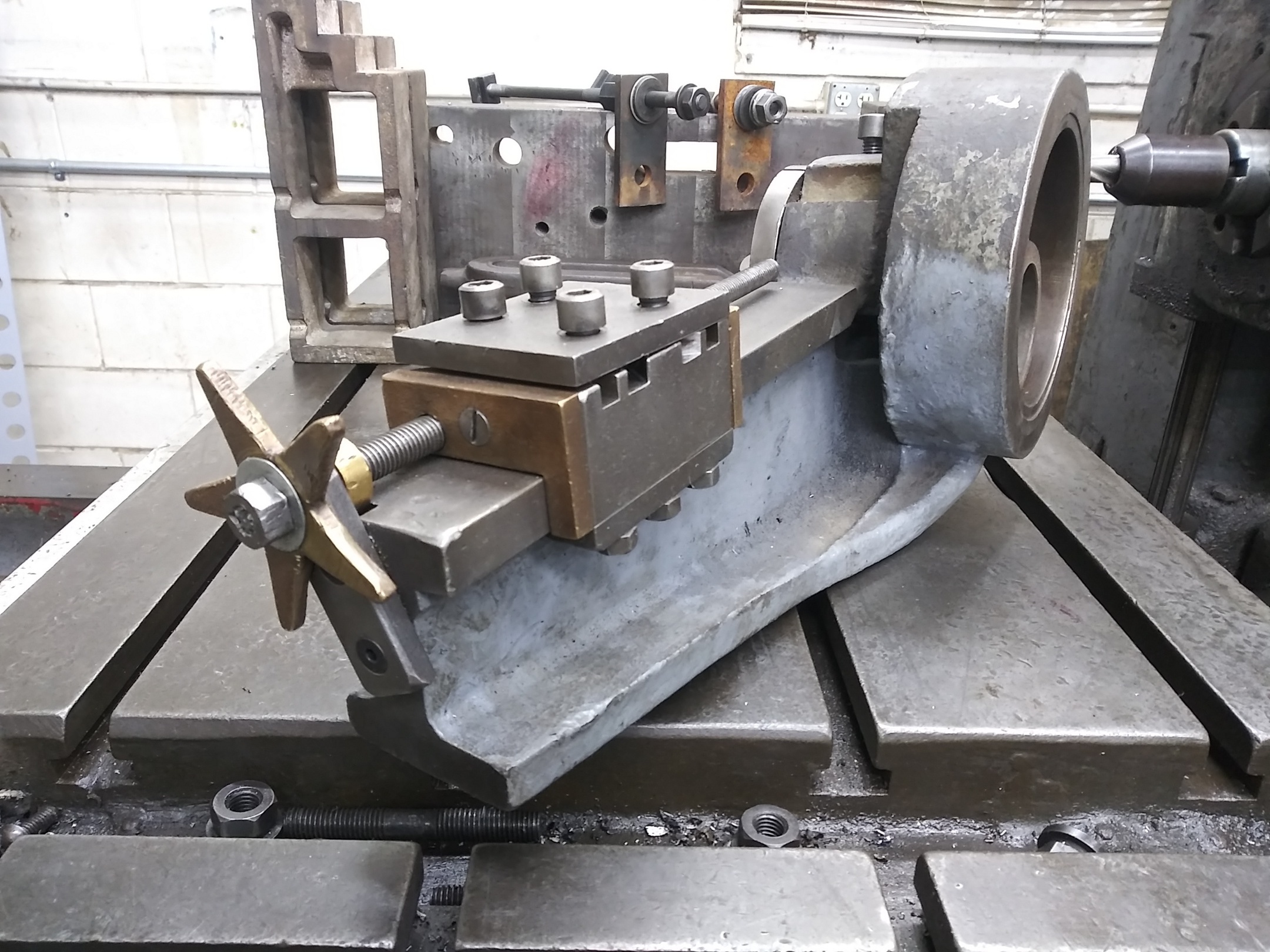

    High-quality black-and-white photographs of large old machines and tools-g-l_facing_head_resized.jpg
    Here is a larger model from Giddings & Lewis, fits a 3" boring mill. 5-star and 1/2-13 thread lead screw; results in 0.0153 per revolution from 0.0769 thread pitch/ 5. Changing lead screw alters pitch, after consideration of part size, tool bit radius [or form], material and rigidity of setup. The tool block holds a conventional square bit, presenting it right or left hand, or angular position for shoulder or undercut. That's when attention level has to be 101%, stopping rotation properly, compared with unobstructed facing work.

    PS, edit. Looking at the post, it struck me what's transpired historically; between that tool, almost 100 years old, and taking it's picture with a telephone....
    Last edited by Toolmaker51; Jan 2, 2022 at 08:12 PM.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  7. The Following 3 Users Say Thank You to Toolmaker51 For This Useful Post:

    bruce.desertrat (Jan 3, 2022), Jon (Jan 3, 2022), marksbug (Jan 2, 2022)

  8. #645
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,938
    Thanks
    774
    Thanked 382 Times in 308 Posts
    yup the telephone brings a little perspective to Eveolution.

  9. #646
    Supporting Member Isambard's Avatar
    Join Date
    Aug 2019
    Location
    Hawke's Bay, New Zealand
    Posts
    156
    Thanks
    0
    Thanked 55 Times in 35 Posts
    Not wishing to be pedantic, but Betts like others called it a boring machine,
    the term boring mill relating to those of the vertical persuasion...

    BTW Did anyone pickup on the dog's breakfast of the work-piece setup?

  10. #647
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    2,659
    Thanks
    251
    Thanked 1,514 Times in 855 Posts

    hemmjo's Tools
    I had to look up "pedantic". I try to learn something new every day. I always do visiting here.

  11. #648
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,373
    Thanks
    8,090
    Thanked 40,142 Times in 11,740 Posts

  12. The Following User Says Thank You to Jon For This Useful Post:

    Ralphxyz (Jan 9, 2022)

  13. #649
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,373
    Thanks
    8,090
    Thanked 40,142 Times in 11,740 Posts
    10,000-ton forging press. Homestead Steel Works. 1890s.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...s_fullsize.jpg


  14. The Following User Says Thank You to Jon For This Useful Post:

    nova_robotics (Jan 17, 2022)

  15. #650
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,334
    Thanks
    7,044
    Thanked 3,011 Times in 1,900 Posts

    Toolmaker51's Tools
    10,000-ton forging press. Homestead Steel Works. 1890s.
    Not awfully different from the press at Long Beach Naval Shipyard; despite promotion as property in one of US largest ever auctions, availability, fully operative condition and incredibly low price it went unsold and scrapped.

    That set of conditions dovetails tightly with response found in post *641. That lamentation is somewhat past-tense, worse now than even possible before.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  16. The Following User Says Thank You to Toolmaker51 For This Useful Post:

    nova_robotics (Jan 17, 2022)
