    Are those big gears machined with the chevron shaped teeth? or is that two big gears put together to make one. Very impressive either way, I just have trouble imaging how they would machine the chevron.

    186 More Best Homemade Tools eBook

  2. #422
    Supporting Member IntheGroove's Avatar
    Join Date
    May 2019
    Location
    Lake Tahoe
    Posts
    2,078
    Thanks
    193
    Thanked 941 Times in 570 Posts

    IntheGroove's Tools

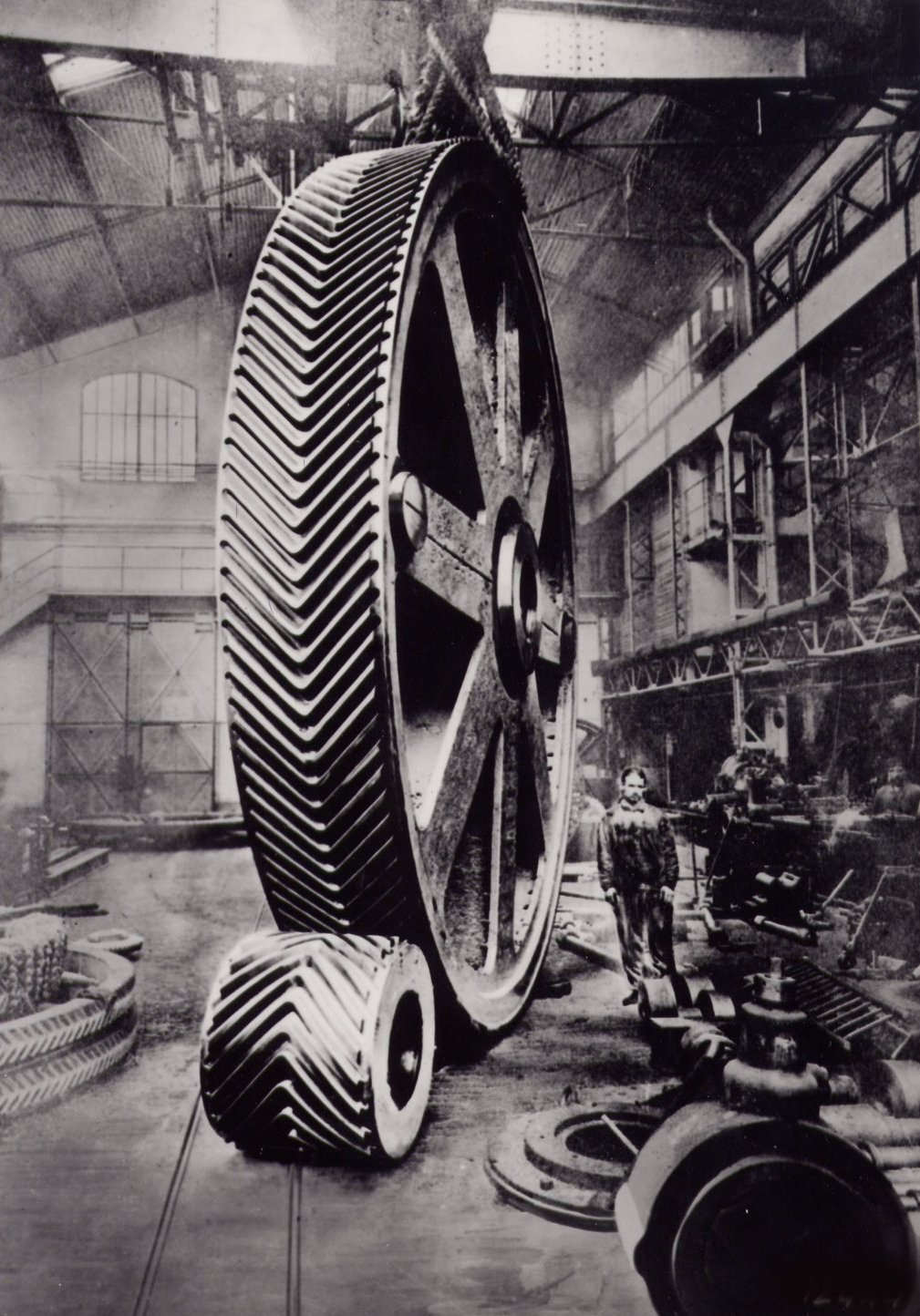

    Machined as one gear...
    High-quality black-and-white photographs of large old machines and tools-engrenages_-_85.488_-.jpg

    2,000+ Tool Plans

  3. #423
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    2,659
    Thanks
    251
    Thanked 1,514 Times in 855 Posts

    hemmjo's Tools
    Ah, I see they are created in several different ways.... as explained on https://en.wikipedia.org/wiki/Herringbone_gear

    "A disadvantage of the herringbone gear is that it cannot be cut by simple gear hobbing machines, as the cutter would run into the other half of the gear. Solutions to this have included assembling small gears by stacking two helical gears together, cutting the gears with a central groove to provide clearance, and (particularly in the early days) by casting the gears to an accurate pattern and without further machining. With the older method of fabrication, herringbone gears had a central channel separating the two oppositely-angled courses of teeth. This was necessary to permit the shaving tool to run out of the groove. The development of the Sykes gear shaper made it possible to have continuous teeth with no central gap. Sunderland, also in England, also produced a herringbone cutting machine. The Sykes uses cylindrical guides and round cutters; the Sunderland uses straight guides and rack-type cutters. The W. E. Sykes Co. dissolved in 1983–1984. Since then it has been common practice to obtain an older machine and rebuild it if necessary to create this unique type of gear. Recently, the Bourn and Koch company has developed a CNC-controlled derivation of the W. E. Sykes design called the HDS1600-300. This machine, like the Sykes gear shaper, has the ability to generate a true apex without the need for a clearance groove cut around the gear. This allows the gears to be used in positive displacement pumping applications, as well as power transmission. Helical gears with low weight, accuracy and strength may be 3D printed."

  4. The Following User Says Thank You to hemmjo For This Useful Post:

    Toolmaker51 (May 16, 2021)

  5. #424
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,938
    Thanks
    774
    Thanked 382 Times in 308 Posts

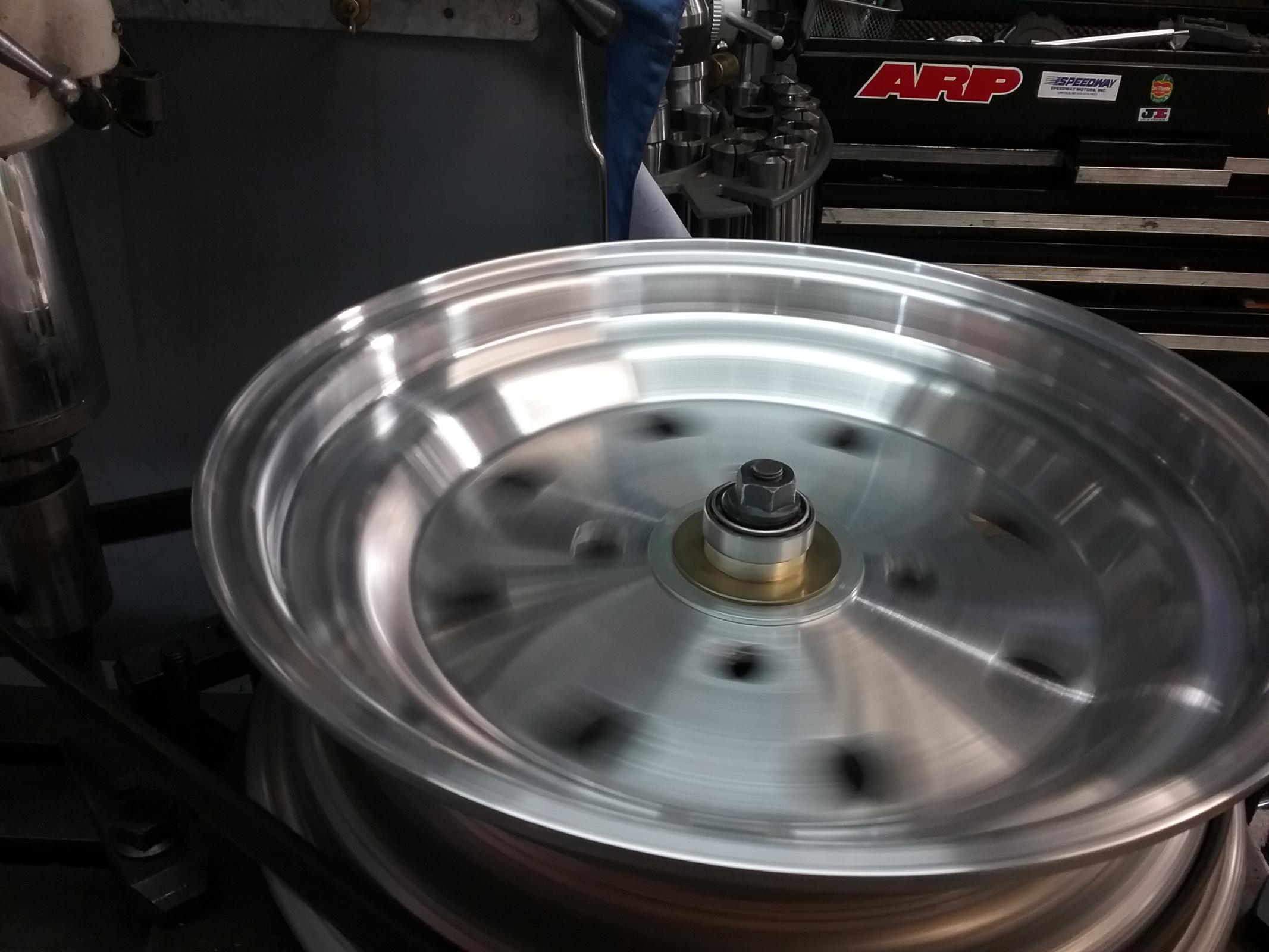

    looks like there making the wheels for my racecar!!!! well...I had some that were forged and some that were spun. and some that were ****....I had some CMS wheels on the front of one of my cars...I thought that stood for China Made ****...I was informed those were made in cali.....fornia. I bought them new as I have all my wheels, they were the worst **** Ive ever seen, wobbly as hell, like 2-3mm run out side to side and the bolt pattern wasent even in the center that was off around 2 mm...how the **** can you make **** like that and charge for it???? I put them on my mill squared them up, straightened,recentered the bolt pattern, and added some lightening holes.High-quality black-and-white photographs of large old machines and tools-20180705_125254.jpg. they were oh so much better when I finished.

  6. #425
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,373
    Thanks
    8,090
    Thanked 40,142 Times in 11,740 Posts
    Double helical cut tooth mill pinions. Mesta Machine Company.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...s_fullsize.jpg


  7. The Following 2 Users Say Thank You to Jon For This Useful Post:

    marksbug (May 24, 2021), nova_robotics (May 29, 2021)

  8. #426
    Supporting Member
    Join Date
    Jul 2020
    Posts
    48
    Thanks
    3
    Thanked 41 Times in 20 Posts
    Mesta built huge presses and stuff which would use gears and other parts this large.

  9. #427
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    2,659
    Thanks
    251
    Thanked 1,514 Times in 855 Posts

    hemmjo's Tools
    I get so many questions when I see this BIG old photos;

    Where is the rest of that machine, What did they do with it, How BIG was the machine that cut those gears, There must be some serious structure under that wood floor!! Maybe it is just wood laid over concrete to limit damage if something is dropped. etc

    Interesting markings on the various bearing sections. I always mark things in similar fashion just incase it is possible to put them back together incorrectly. Those marks appear to be for some other purpose.

  10. #428
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,938
    Thanks
    774
    Thanked 382 Times in 308 Posts
    I saw some types of these under the Leonardo D. engerneering(I think, something like that,motion.somethen ) mustseeum in milan years ago,so awesome. great way to control back lash and thrust at the same time and adjustable too. I saw oh somuch in that dirt floor machine shop with 4 story mustseeum built over it. I even learned how DOM is made there....I had no idea, and no idea that stuff was going on centurys ago.I need to go back for another look for a few years.

  11. #429
    Supporting Member madokie's Avatar
    Join Date
    Oct 2017
    Posts
    165
    Thanks
    1
    Thanked 54 Times in 47 Posts
    Herringbone gears,,,i worked in a machine shop in 1998-2002 here in OKC , that had 1934 sydney lathe 20 " swing by 6 ft long bed,all the headstock gears were herringbone,6 speeds, u changed speeds by turning a two handed lever when the spindle was barely rotating,,fastest speed was 300,great lathe that could take a 1/4 inch cut all day ,,till a headstock bearing needed replacing or tightening up, which happened about every 6 months..

  12. #430

    Join Date
    Sep 2020
    Posts
    55
    Thanks
    61
    Thanked 13 Times in 10 Posts
    Yes Good Question,What were they Used for? Where are the Top Caps? Certainly Don't Put Your Fingers Anywhere Near Those Gears When Turning!
