    Height Gage Magnifier

    I have this old Starrett 12" height gage that I like to use for layouts. Eyes are not what they used to be so I needed an assist.
    Cut a slice of magnifier from an old Bausch and Lomb reading magnifier. I glued it to the vernier slide and there it is. Instant 2X
    magnification. Much faster than holding up my little round magnifier to the scale.

    Cheers, JR

    No vintage tools were harmed in this mod.

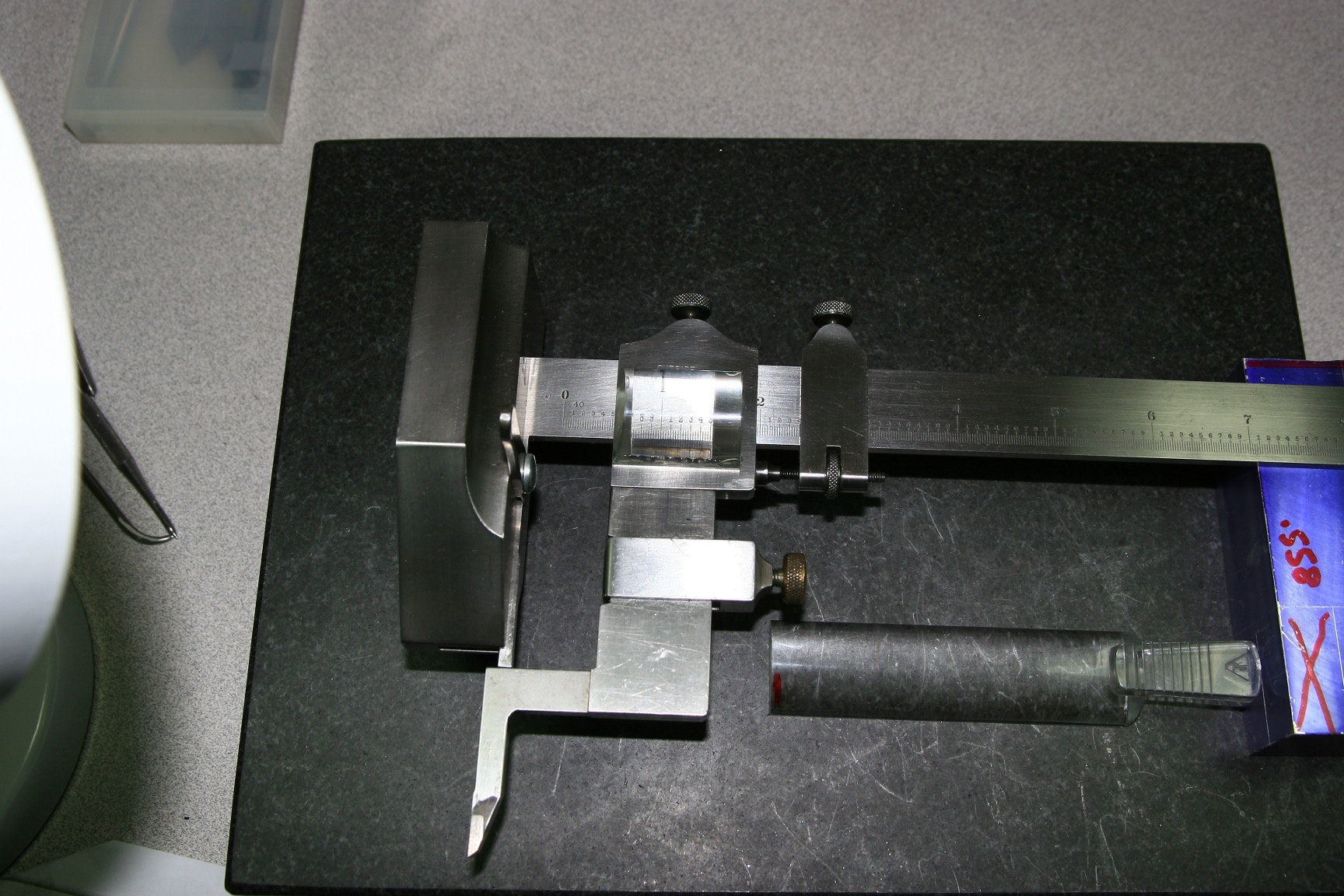

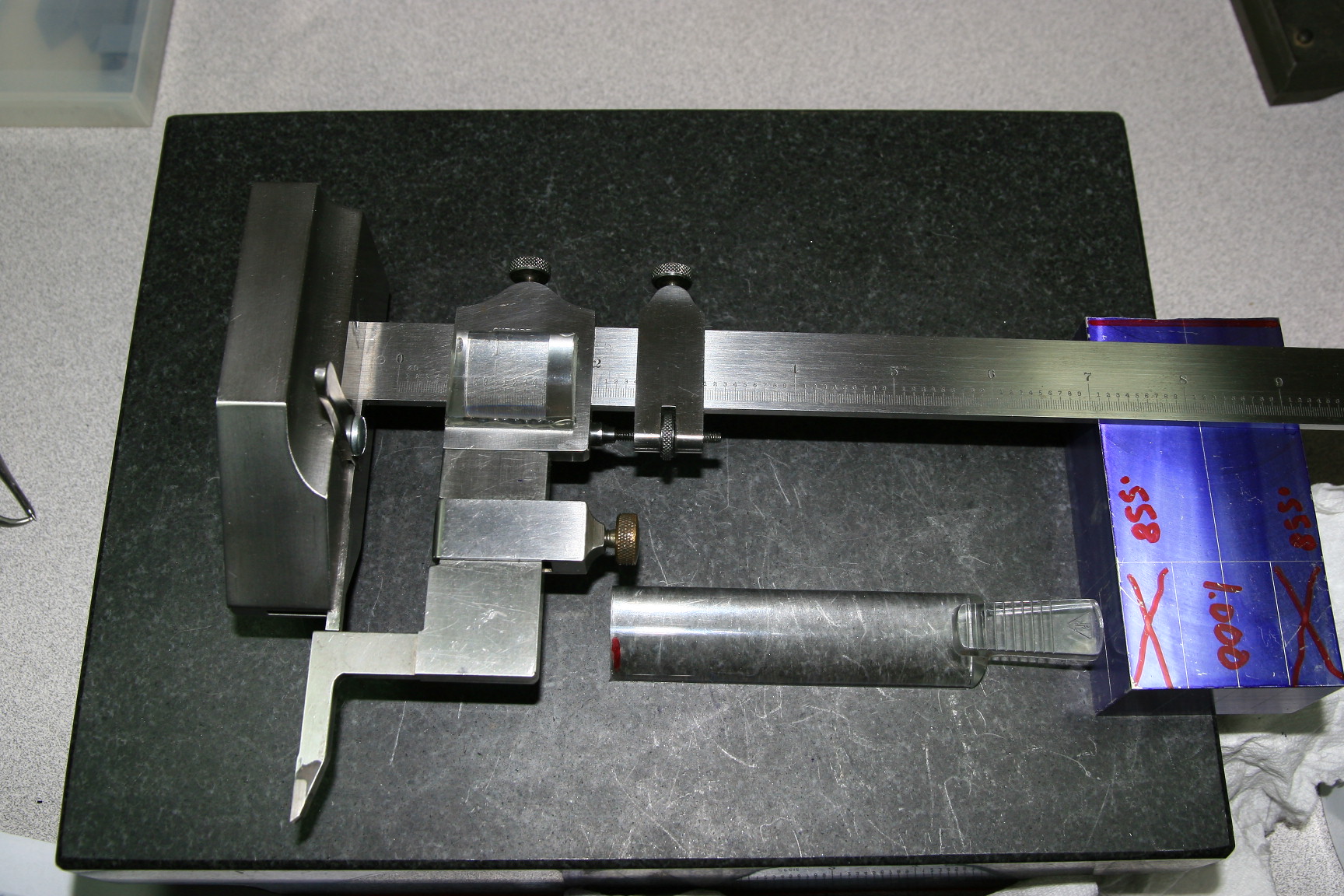

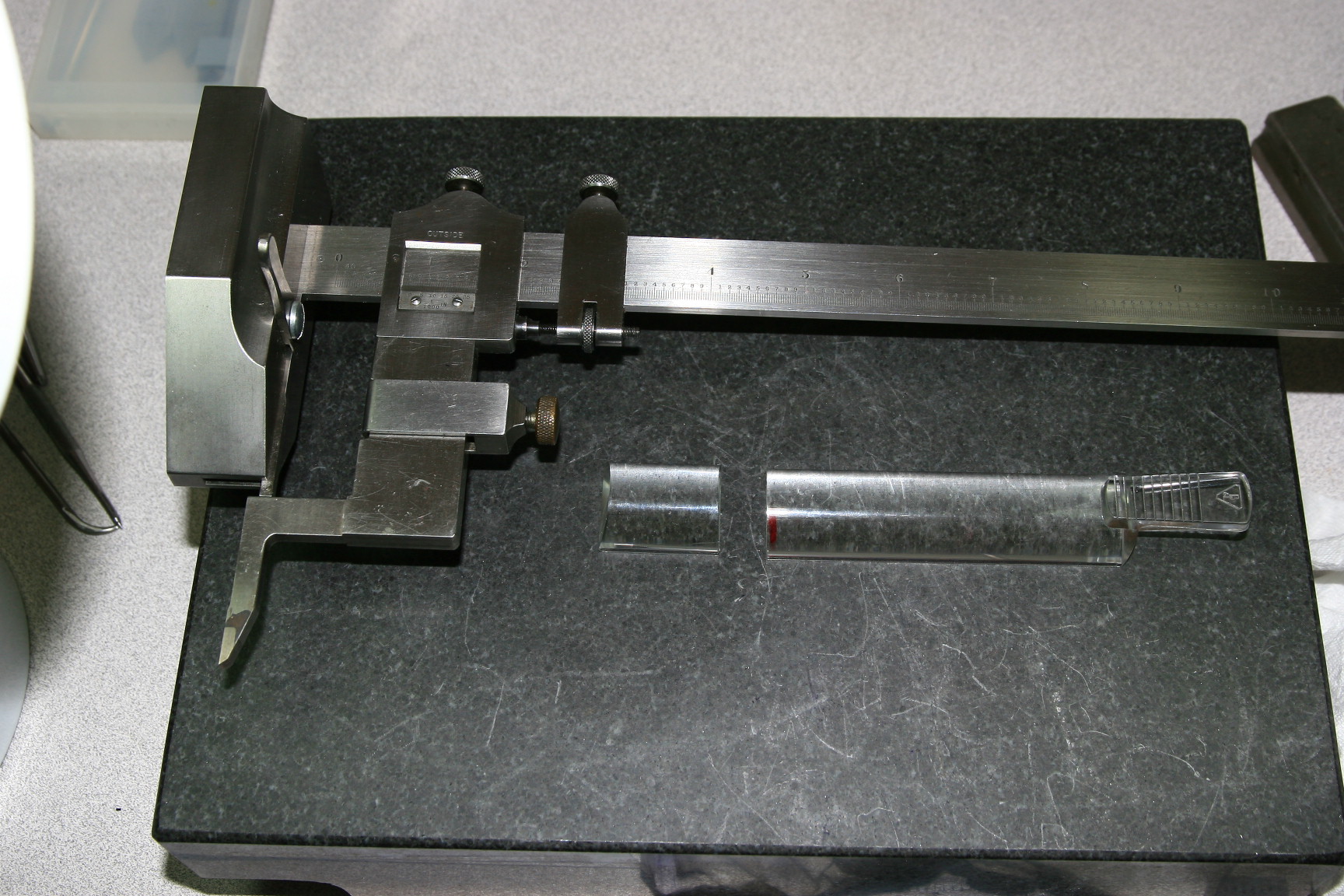

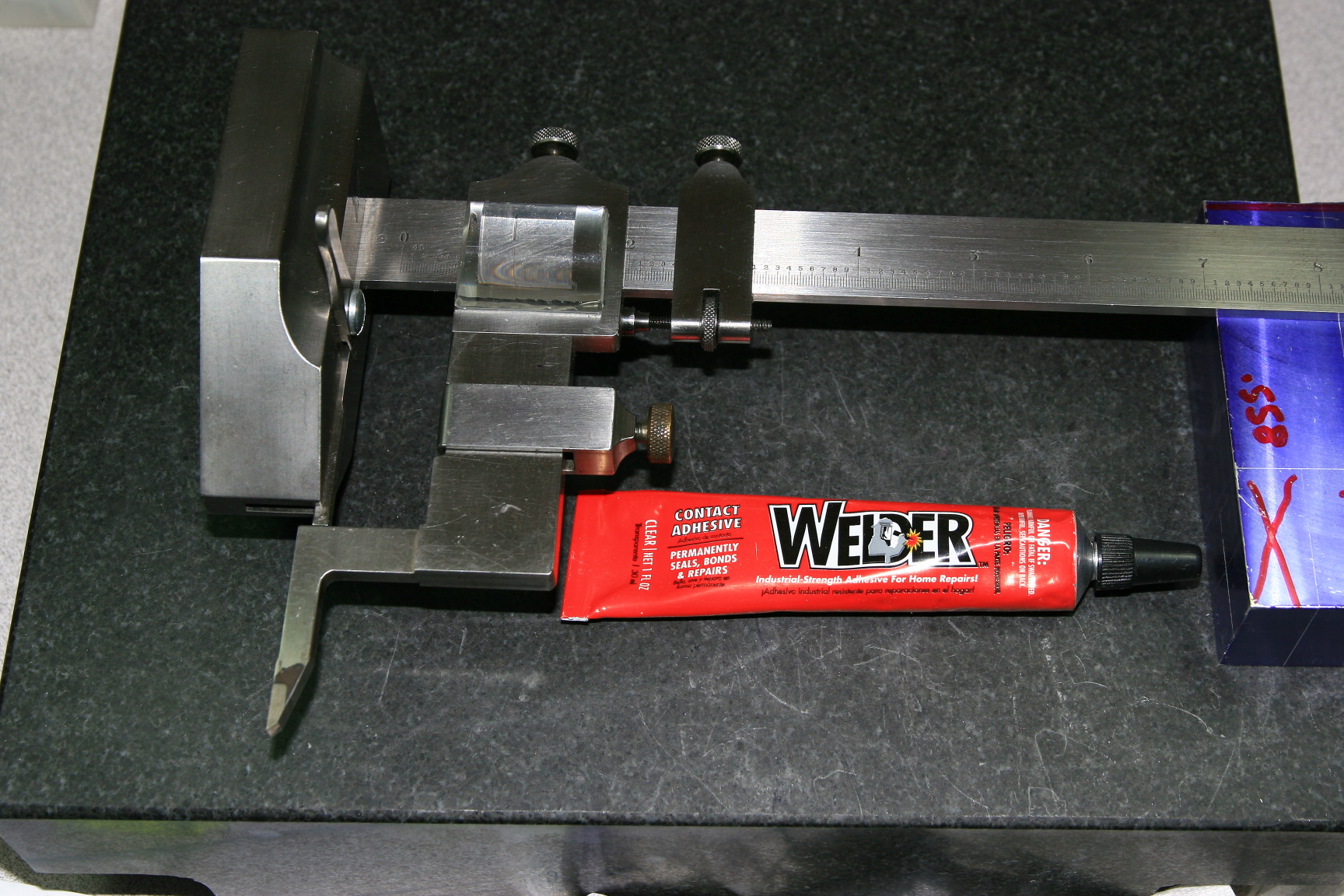

    Attached Thumbnails Attached Thumbnails Height Gage Magnifier-img_2269.jpg   Height Gage Magnifier-img_2270.jpg   Height Gage Magnifier-img_2272.jpg   Height Gage Magnifier-img_2275.jpg

    186 More Best Homemade Tools eBook

  2. The Following 8 Users Say Thank You to jjr2001 For This Useful Post:

    baja (Feb 25, 2021), mwmkravchenko (Jan 23, 2019), Paul Jones (Jan 27, 2019), PJs (Jan 24, 2019), rossbotics (Jan 24, 2019), saintrain (Jan 26, 2019), Seedtick (Jan 23, 2019), Toolmaker51 (Jan 31, 2019)

  3. #2
    Supporting Member rossbotics's Avatar
    Join Date
    Dec 2013
    Location
    Florida
    Posts
    731
    Thanks
    1,019
    Thanked 1,684 Times in 404 Posts

    rossbotics's Tools
    Hey JR.

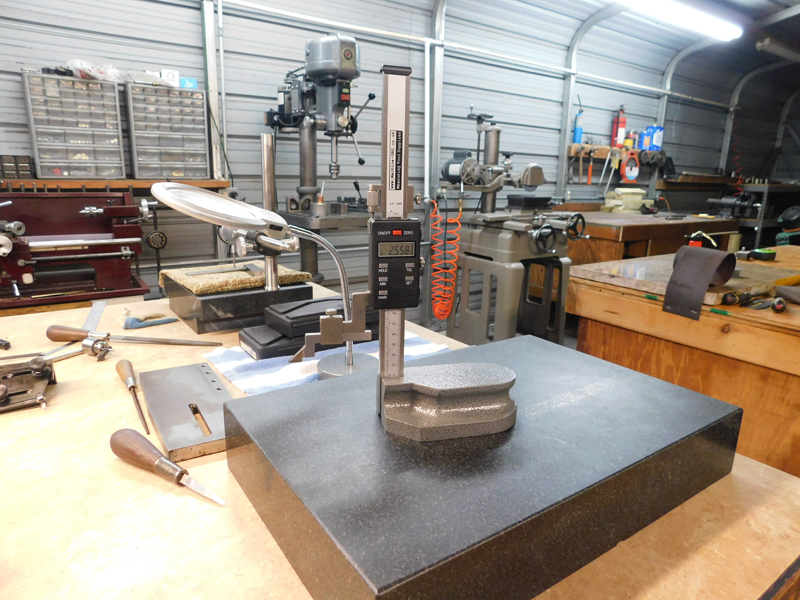

    I use to have a 6" Starrett height gage and used it for years until I got like you and couldn't see good enough to line up the graduations any more, even with glasses it was still difficult, had to go digital a few years ago, great idea !

    Doug




    Height Gage Magnifier-1.jpg

    2,000+ Tool Plans
    Comments are always welcome
    Doug

    Subscribe to my you tube channel

    https://www.youtube.com/channel/UCDD..._as=subscriber



    Tool Plans for Sale by rossbotics






  4. The Following 2 Users Say Thank You to rossbotics For This Useful Post:

    jjr2001 (Jan 28, 2019), PJs (Jan 24, 2019)

  5. #3
    Supporting Member jjr2001's Avatar
    Join Date
    Jun 2016
    Posts
    927
    Thanks
    1,185
    Thanked 2,092 Times in 562 Posts

    jjr2001's Tools
    Thanks Doug, I have considered a new 6" digital or even a dial but I was concerned that 6" was a bit small.
    Do you find that you have to revert to something other than the 6" digital for long measurements?

    Cheers, JR

  6. The Following User Says Thank You to jjr2001 For This Useful Post:

    PJs (Jan 24, 2019)

  7. #4
    Supporting Member rossbotics's Avatar
    Join Date
    Dec 2013
    Location
    Florida
    Posts
    731
    Thanks
    1,019
    Thanked 1,684 Times in 404 Posts

    rossbotics's Tools
    Quote Originally Posted by jjr2001 View Post
    Thanks Doug, I have considered a new 6" digital or even a dial but I was concerned that 6" was a bit small.
    Do you find that you have to revert to something other than the 6" digital for long measurements?

    Cheers, JR
    Thanks JR.

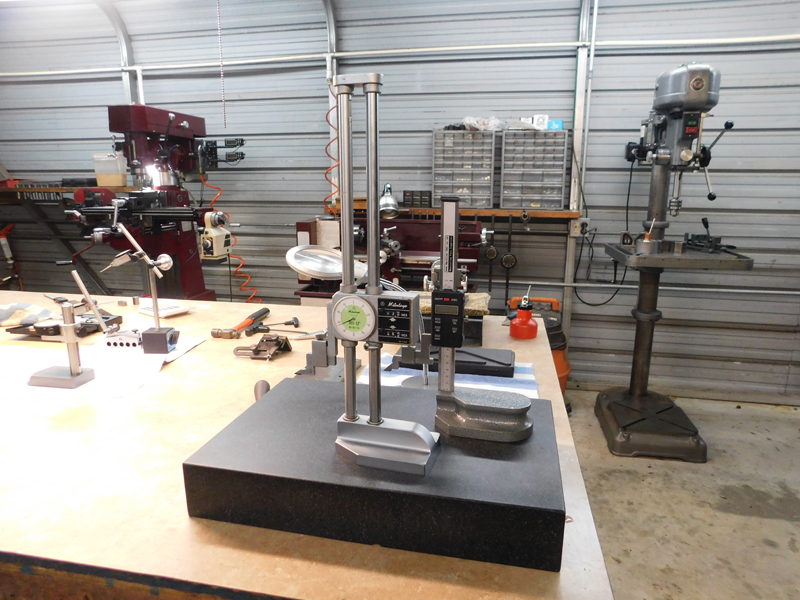

    I forgot to mention I have this 12" dial height gage that I use when the 6" isn't enough, (see photo below) but the 6" one works 90% of the time, never enough tools.
