Did all steam locomotoves operate in that manner, or just some of them?
Very few actuallyOriginally Posted by tlnixon

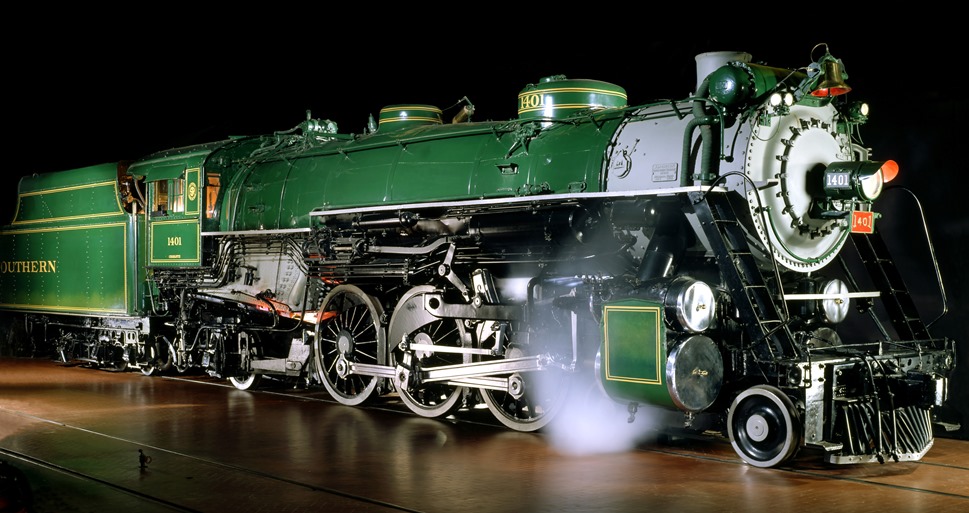

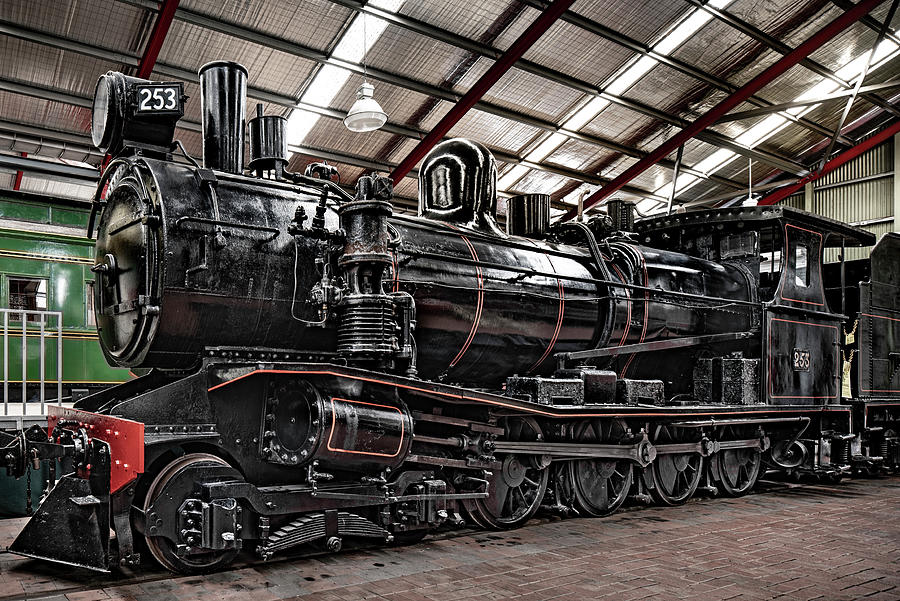

most would look more like these
Never try to tell me it can't be done
When I have to paint I use KBS products
The idea behind geared locomotives is to drive as many wheels as possible to improve the tractive effort. This makes them attractive for use in difficult terrain as in logging and mining.
There are three classes of geared locos...
SHAY
Two or three cylinder vertical engine driving longitudinal side gear shaft. Boiler offset to side opposite engine.
HEISLER
Two cylinders in a V-configuration under centralized boiler. Engines drive a centrally mounted driveshaft that is geared to wheels.
CLIMAX
Similar to Heisler but engines point forward at an angle of 45 deg to vertical.
---
Regards, Marv
Failure is just success in progress
That looks about right - Mediocrates
