    Complex Engine Duesenberg W 24

    Given many of us here on HMT.net are considered by those who do not know about this site to be slightly off kelter in our way of thinking, as well as our admiration for the bazar complexity of things.
    I thought I would share an engine which I think was both ahead and behind its own time
    I give you the Duesenberg W24 made up from 6 4 cylinder blocks on a single crankcase 1 crankshaft 6 cam shafts 4 valves per cylinder but for some reason a total of 30 exhaust ports. Throughout its evolution it went from a single carburetor to 5 carbs back to 1 carb, only 2 of these engines were ever built with enough parts to build a 3rd and 1 still survives

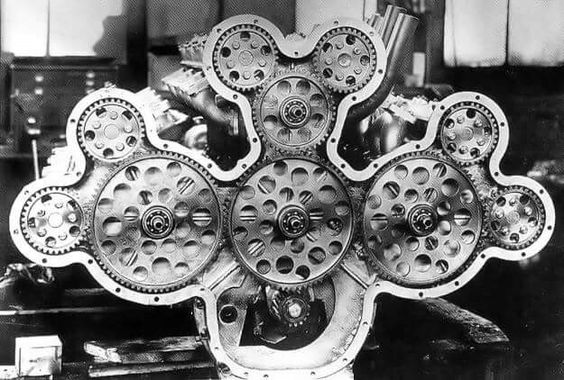

    Complex Engine Duesenberg W 24-272194295_5494627883887389_3500931803400448147_n.jpg

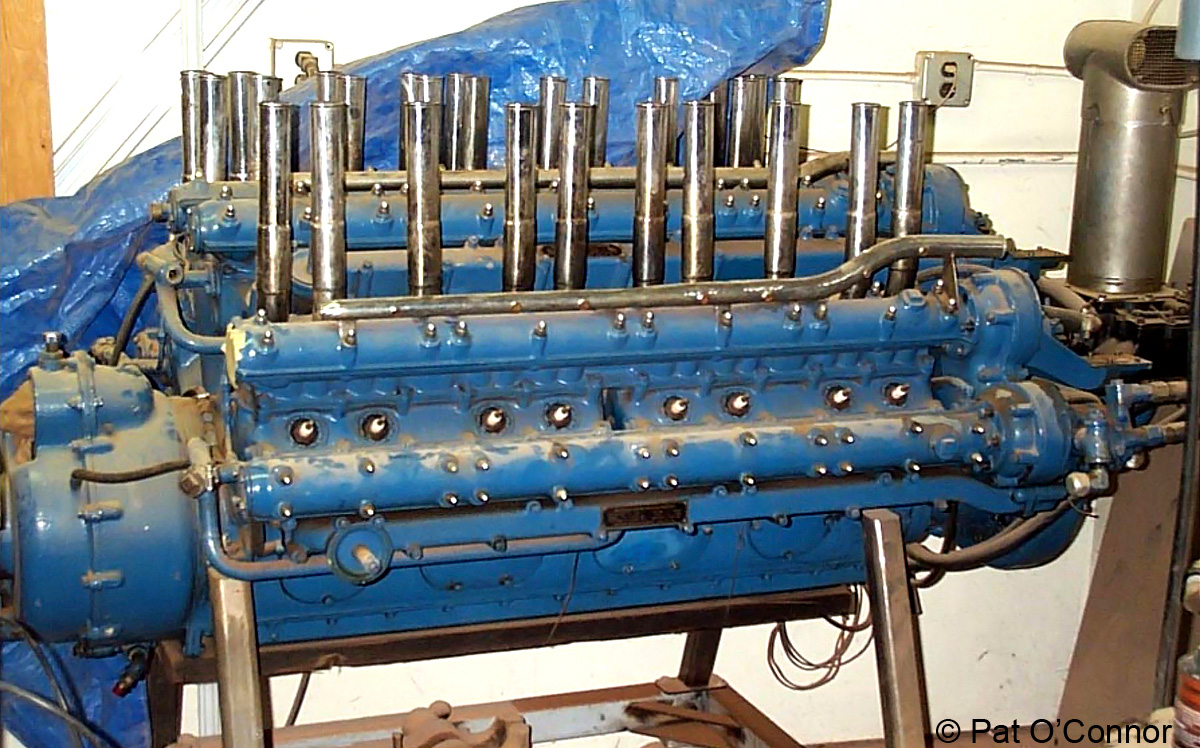

    Complex Engine Duesenberg W 24-duesenberg-w-24-1996-copy.jpg
    https://oldmachinepress.com/2013/03/...marine-engine/

    186 More Best Homemade Tools eBook
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  2. The Following 10 Users Say Thank You to Frank S For This Useful Post:

    Altair (Jan 26, 2022), baja (Jan 26, 2022), clydeman (Jan 25, 2022), DIYSwede (Jan 24, 2022), durrelltn (Jan 25, 2022), Hoosiersmoker (Jan 26, 2022), KustomsbyKent (Jan 25, 2022), mwmkravchenko (Jan 26, 2022), Philip Davies (Jan 26, 2022), Tonyg (Jan 26, 2022)

  3. #2
    Supporting Member Paul Alciatore's Avatar
    Join Date
    Mar 2014
    Location
    Beaumont, TX
    Posts
    304
    Thanks
    9
    Thanked 157 Times in 83 Posts

    Paul Alciatore's Tools
    It'a a doozie!

    2,000+ Tool Plans
    Paul A.

  4. The Following User Says Thank You to Paul Alciatore For This Useful Post:

    Tonyg (Jan 26, 2022)

  5. #3
    Supporting Member mwmkravchenko's Avatar
    Join Date
    Nov 2017
    Location
    Perth Ontario Canada
    Posts
    1,042
    Thanks
    5,271
    Thanked 394 Times in 280 Posts
    Quote Originally Posted by Frank S View Post
    Given many of us here on HMT.net are considered by those who do not know about this site to be slightly off kelter in our way of thinking, as well as our admiration for the bazar complexity of things.
    I thought I would share an engine which I think was both ahead and behind its own time
    I give you the Duesenberg W24 made up from 6 4 cylinder blocks on a single crankcase 1 crankshaft 6 cam shafts 4 valves per cylinder but for some reason a total of 30 exhaust ports. Throughout its evolution it went from a single carburetor to 5 carbs back to 1 carb, only 2 of these engines were ever built with enough parts to build a 3rd and 1 still survives
    Click image for larger version.

Name:	272194295_5494627883887389_3500931803400448147_n.jpg
Views:	450
Size:	64.8 KB
ID:	41582
    Click image for larger version.

Name:	duesenberg-w-24-1996-copy.jpg
Views:	399
Size:	389.4 KB
ID:	41583
    https://oldmachinepress.com/2013/03/...marine-engine/
    How is it that I only count 8 spark plugs on the second picture? Should be 12? I like the multivalves. So many kids think this is a new idea. Not to many things have not been tinkered with at some point. The biggest differences is the cost to make them and better metal alloys.

  6. #4
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,634
    Thanks
    2,186
    Thanked 9,134 Times in 4,366 Posts

    Frank S's Tools
    Quote Originally Posted by mwmkravchenko View Post
    How is it that I only count 8 spark plugs on the second picture? Should be 12? I like the multivalves. So many kids think this is a new idea. Not to many things have not been tinkered with at some point. The biggest differences is the cost to make them and better metal alloys.
    you can only count 8 because it has 3 banks in this configuration "\|/"
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  7. The Following User Says Thank You to Frank S For This Useful Post:

    mwmkravchenko (Jan 26, 2022)

  8. #5
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,634
    Thanks
    2,186
    Thanked 9,134 Times in 4,366 Posts

    Frank S's Tools
    One interesting tid bit of information is the W 24 engine was contracted to be built in 1925 or 26. Duesenberg had been building overhead valve engines from the very beginning of their existence and in 1919 built a huge V16 engine for aircraft contracted in 1918 by the government to develop engines for war planes the war ended before they were completed. The model H V16 engine was massive in that it had 3393 cubic inches displacement 3 valves per cylinder a single camshaft.
    For automotive engines Duesenberg always had overhead valve engines and from very early on used overhead camshafts. but by no means the pioneers in OHC or DOHC. Maudslay Motors probably holds that distinction dating back to as early as 1902
    In the USA though Many american car manufactures hung onto the F head design "Flat head" engine up until the early 1960's I believe that Nash/Rambler was the last to convert to OHV Yet still in 2022 not all engines are OHC due to their complexity and cost of manufacture
