    SAM, the semi-automated mason, built by Construction Robotics:


    2,000+ Tool Plans

  4. The Following 11 Users Say Thank You to Jon For This Useful Post:

    bimmer1980 (Sep 14, 2018), dubbby (May 20, 2020), KustomsbyKent (Sep 12, 2018), LucasC (Sep 12, 2018), oldcaptainrusty (Sep 12, 2018), PJs (Sep 13, 2018), ranald (Sep 19, 2018), rlm98253 (Sep 12, 2018), Seedtick (Sep 12, 2018), Shanty (Sep 12, 2018), Toolmaker51 (Sep 12, 2018)

  5. #3
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,634
    Thanks
    2,185
    Thanked 9,134 Times in 4,366 Posts

    Frank S's Tools
    Reminds me of the story of John Henry
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  6. #4
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,334
    Thanks
    7,044
    Thanked 3,011 Times in 1,900 Posts

    Toolmaker51's Tools
    A proper, memorable name for my structure hasn't been adopted yet, so...
    The midwest facility of Marv's Garage Mahal was built in 1894. The walls are 12+" thick, 16' high; 100' long x 65' wide, and 3' above grade. The courses are interlaced about every 5th row, composing obviously an immense number of bricks. But not as many involved across the street. 6 stories and 600,000 square feet.
    I think often about how much labor and planning went into construction of these buildings. While the video has SAM using a different variety of brick [and I'm guessing concrete masonry units could be done the same way] the work rate is rather phenomenal. No trowels, hods, mason's folding rule, hand level, loading brick carts, wow!
    All the tenders might do beside feed machine is strike and brush joints.
    I wonder also at cost differential, between hand laying and point machine laid is less expensive per square.
    Last edited by Toolmaker51; Sep 13, 2018 at 04:16 PM.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  7. The Following 2 Users Say Thank You to Toolmaker51 For This Useful Post:

    PJs (Sep 13, 2018), ranald (Sep 20, 2018)

  8. #5
    Supporting Member mklotz's Avatar
    Join Date
    Aug 2015
    Location
    LA, CA, USA
    Posts
    3,525
    Thanks
    362
    Thanked 6,559 Times in 2,161 Posts

    mklotz's Tools
    Quote Originally Posted by Toolmaker51 View Post
    ...The midwest facility of Marv's Garage Mahal was built in 1894. ...
    That's GARAJ Mahal and inside it sits Cecil, my mill drill, so-named because, naturally, Cecil B DeMill(e).
    ---
    Regards, Marv

    Failure is just success in progress
    That looks about right - Mediocrates

  9. The Following 3 Users Say Thank You to mklotz For This Useful Post:

    PJs (Sep 13, 2018), ranald (Sep 20, 2018), Toolmaker51 (Sep 13, 2018)

  10. #6
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,634
    Thanks
    2,185
    Thanked 9,134 Times in 4,366 Posts

    Frank S's Tools
    Good one Marv
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  11. #7
    Supporting Member ranald's Avatar
    Join Date
    Jan 2018
    Location
    Black Mountain Queensland
    Posts
    1,326
    Thanks
    992
    Thanked 367 Times in 256 Posts

    ranald's Tools
    It is quite impressive esp for large scale commercial work on flat ground.
    No profiles, stringlines, mud boards, etc and certainly "NO PIGS". NO ONE wants one of those in a structure: only recourse is demolish.
    When I had a bad debt, in the early 70's, I worked a second job at nights; commercial cleaning & at weekends I was "brickies labourer". The "in" bricks were wire cut very silicone ones that ripped leather gloves like is hard to comprehend. My cut hands could hardly hold a pen or industral floor cleaner but I managed & paid my bills. I was not to realise then, that that lesson would pay me back much later. In late 80's I was building a house (17000 bricks without the future garage) and a boom in housing saw no tradies available. I finally sourced a tradie & I laboured for him and got the job done. I ended saving a lot of time & rent being able to get involved.

  12. The Following User Says Thank You to ranald For This Useful Post:

    rgsparber (Oct 2, 2018)

  13. #8
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,438
    Thanks
    8,100
    Thanked 40,247 Times in 11,775 Posts

  14. The Following 2 Users Say Thank You to Jon For This Useful Post:

    Moby Duck (Oct 3, 2018), Seedtick (Oct 2, 2018)

  15. #9
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,334
    Thanks
    7,044
    Thanked 3,011 Times in 1,900 Posts

    Toolmaker51's Tools
    That's a fine idea. Not hard to replicate or use. A DIY'er can see, only the adjustments for thickness/ width of mortar bed [and volume of box] as minor issues. The demonstration lacks how they get a wet edge and finish joints; sufficient mortar is a requirement.

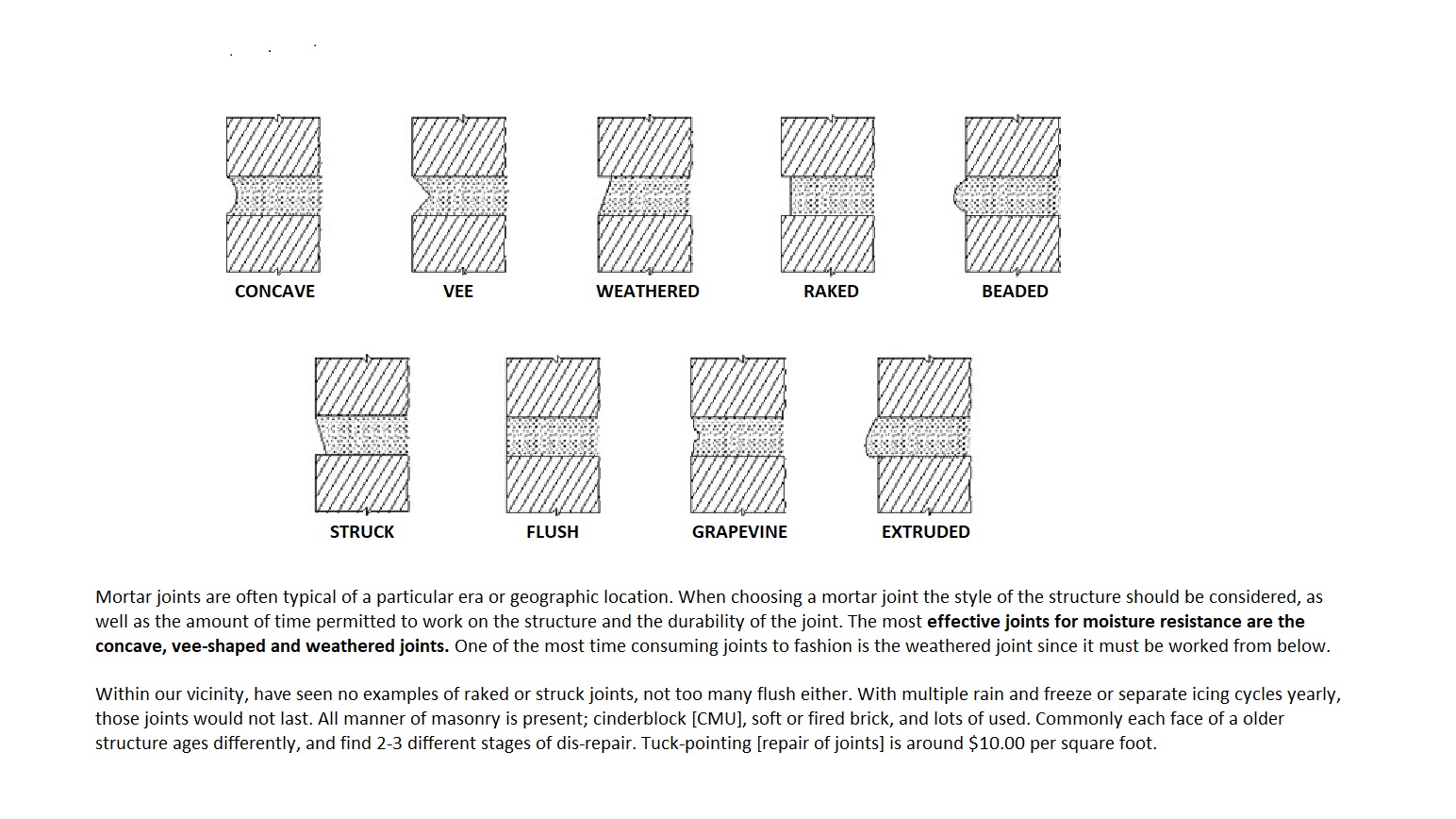

    Brick laying machine GIF-masonry.jpg
    Masonry joints deteriorate, especially those which retain a moisture deposit. It's obvious how it occurs in raked or struck, despite tool provides smooth mortar. Flush joints are quick, but remaining surface is porous.

    Would enjoy cinderblock fence after connecting single apartment with building. Gauge Hall, as it may become known, will deserve a secure perimeter. Delivering mortar as the GIF shows gets project [linear 250' 76m] back in DIY realm.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  16. The Following User Says Thank You to Toolmaker51 For This Useful Post:

    PJs (Oct 2, 2018)

  17. #10
    Supporting Member ranald's Avatar
    Join Date
    Jan 2018
    Location
    Black Mountain Queensland
    Posts
    1,326
    Thanks
    992
    Thanked 367 Times in 256 Posts

    ranald's Tools
    mortar looks a little too sloppy (weaker) & what about Perps? Hard to imagine that just how the "box" slides so easily. don't think they will ever really replace an experienced "brickey"! That idea is similar or based upon the kerb making machines so will have its merits in some situations.
    side track.
    Funny, the Thai bricks I saw were the size of an icecream-I sent a pic back to one of my brickie mates when travelling there. He was amazed at the small size & questioned the time to lay & the strength of such skinny walls. Gosh a cavity wall would be not much thicker than a mega brick single skin walls=imagine the number of cavety ties/ or rhs to support strengthen the mass.
